Battioni Pagani - 9731000001 - Vacuum pump

SKU: battioni-pagani-9731000001

Battioni Pagani - 9731000001 - Vacuum pump

€3,369.25€2,879.70 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,369.25

Weight (kg)
250
Max Pressure
1,5 bar
Max Vacuum (bar)
0.95
Hose Connection (mm)
100
Max Drive Speed (U/min)
600
Compressor Air Output (l/min)
14420
Power Requirement at 0.5 bar Relative Pressure (1.5 bar Absolute) (kW)
36
Manufacturer

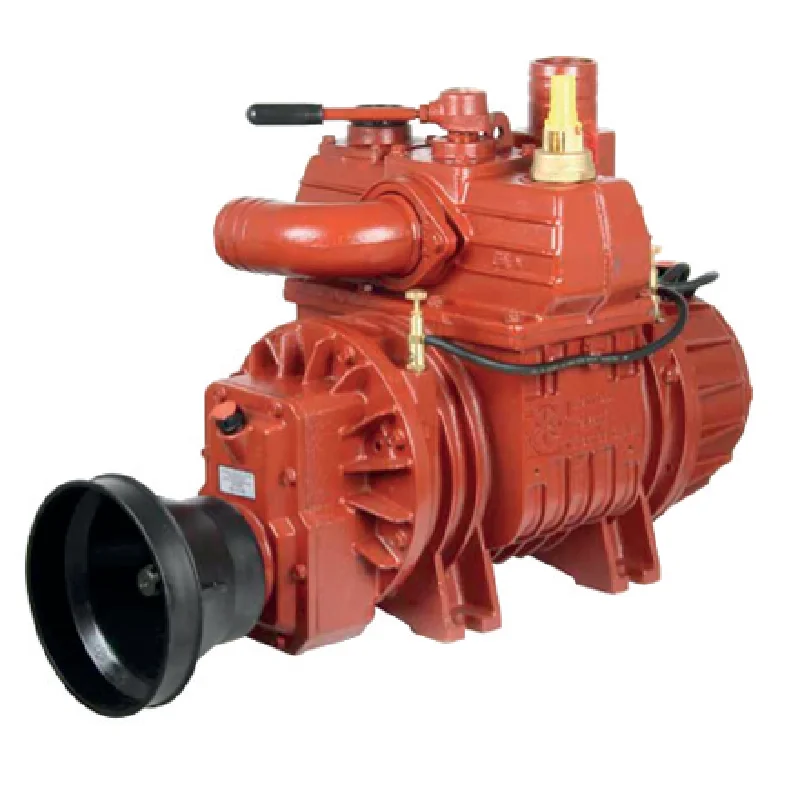

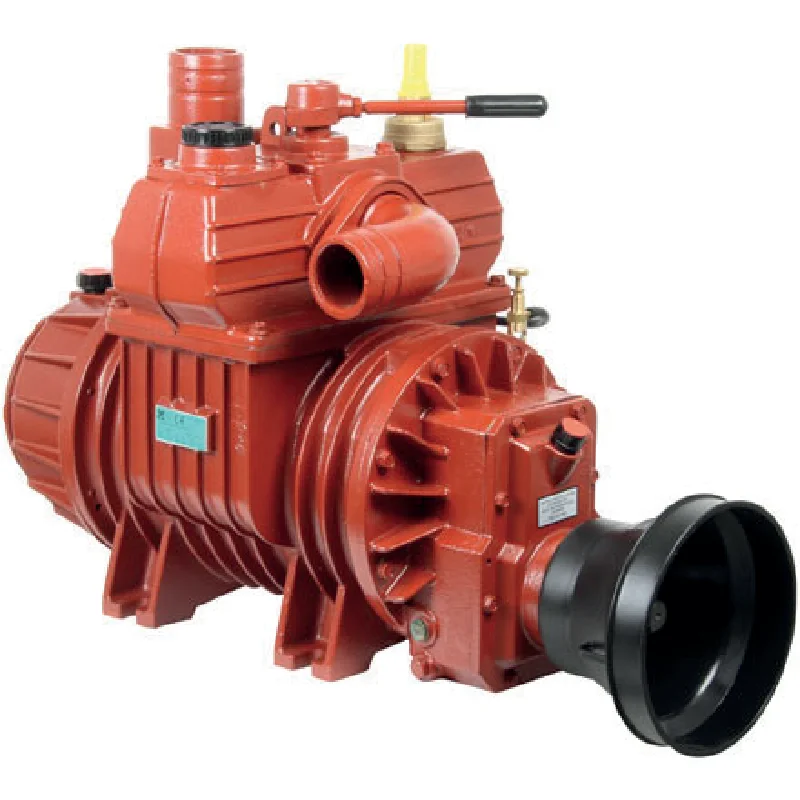

Vacuum pump STAR 84/MV LF, 540 rpm, connection 100 mm With reduction gear (540 rpm) Rotation direction left (viewed from the front onto the PTO shaft) Forced lubrication (with oil pump and adjustable drip oiler) Standard with vacuum valve Overpressure valve not included in delivery. The drip oiler is only roughly pre-set upon delivery – please recheck during operation to 40 to 50 drops/min! When selecting the compressor, pay attention to the correct size; with a compressor that is too large, excess air escapes outwards through the overpressure valve during the pressure process – the compressor "whistles".
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment. Shop more than 1,911 genuine Battioni Pagani spare parts.
