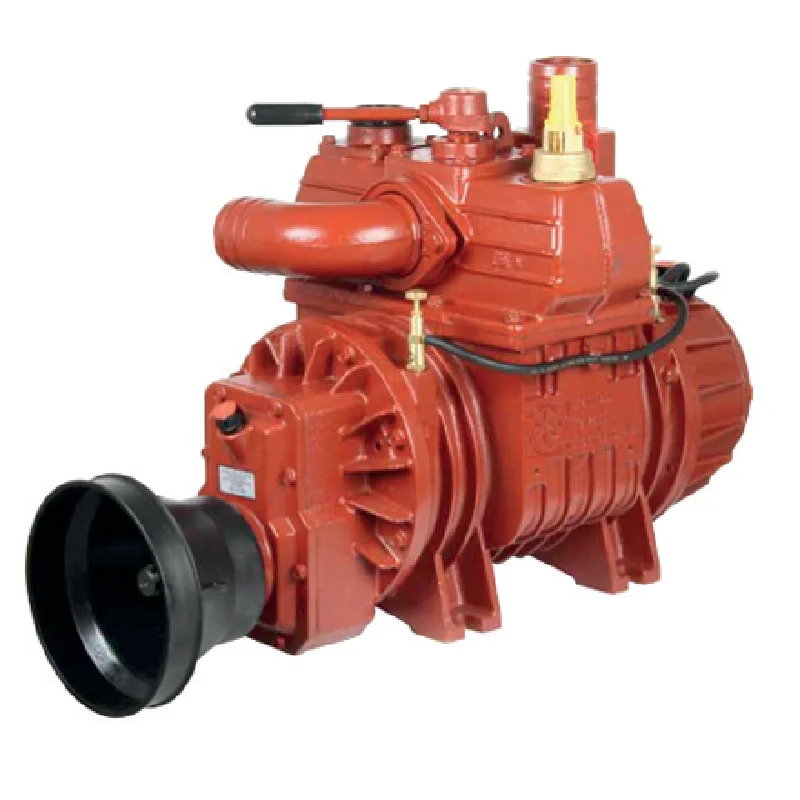

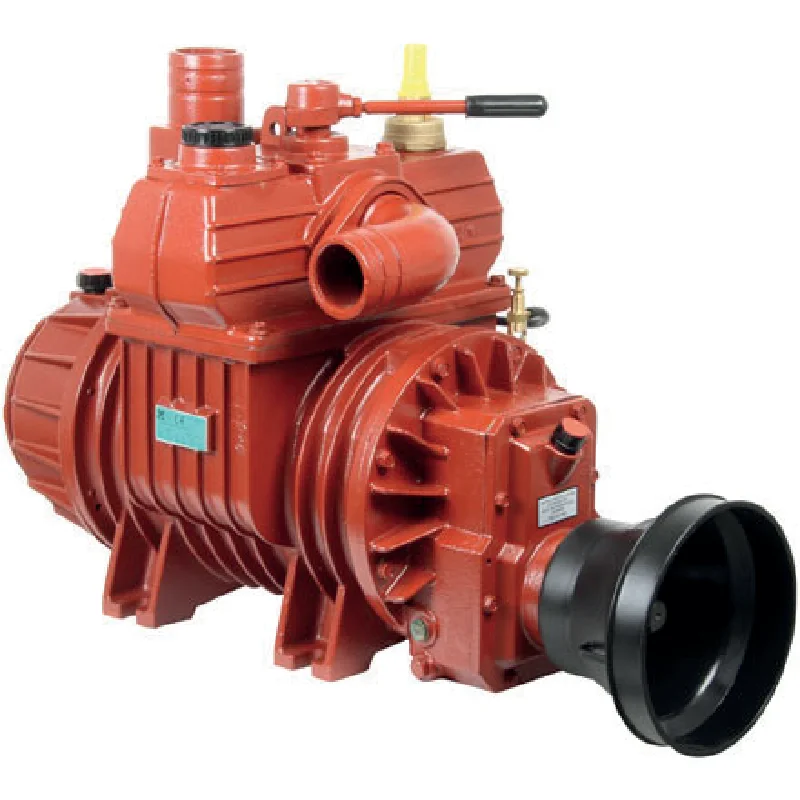

Battioni Pagani - 9731000002 - Vacuum pump

SKU: battioni-pagani-9731000002

Battioni Pagani - 9731000002 - Vacuum pump

€3,181.74€2,719.44 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,181.74

Vacuum pump STAR 84/MV LA, 540 rpm, connection 100 mm With reduction gear (540 rpm) Rotation direction left (viewed from the front onto the PTO shaft) Automatic lubrication (NO adjustment via drip oiler possible) Standard with vacuum valve Overpressure valve not included in delivery. When selecting the compressor, pay attention to the correct size; with a compressor that is too large, excess air escapes outwards through the overpressure valve during the pressure process – the compressor "whistles".
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 1,243 genuine Battioni-pagani spare parts.

Brand
Battioni Pagani
Weight (kg)
250
Max Pressure
1,5 bar
Max Vacuum (bar)
0.95
Hose Connection (mm)
100
Max Drive Speed (U/min)
600
Compressor Air Output (l/min)
14420
Power Requirement at 0.5 bar Relative Pressure (1.5 bar Absolute) (kW)
36
Manufacturer
Battioni Pagani
