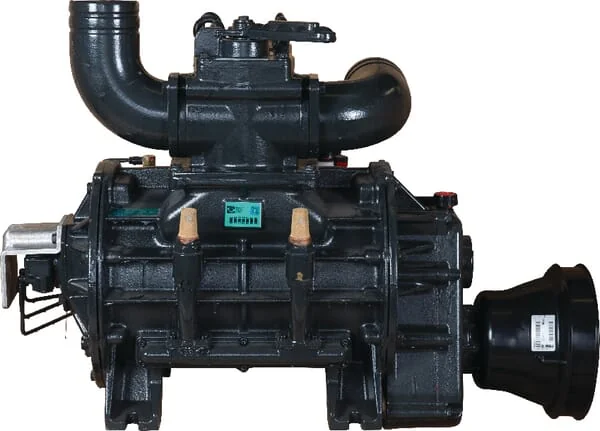

Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani
Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani
Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani
Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani
Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani
Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani

Battioni Pagani - BALLAST16500M - Vacuum Pump Standard AL CCW D100 LL Battioni Pagani

€3,467.46

(Excl. VAT)

Price

(Excl. VAT)

€3,467.46

Product Description

BALLAST pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way) BALLAST pumps provide longer running times in vacuum operation Supplied with heat-resistant "long-life" discs as standard The pump temperature can be read on the temperature gauge strips The inspection hole with maximum wear indicator allows the wear on the discs to be checked Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory A test report is prepared for each pump by serial number
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
245 kg
Benefits
Minimum repair costs thanks to the unique automatic protection system As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Long life
Drive type
PTO 540 rpm
Max vacuum
0,95 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Including PTO shaft cover Without pressure relief valve (item 0250013) and vacuum valve (item 0155513) The pumps are delivered without lubrication oil (item BP5070)
Shaft diameter
1-3/8 Inch
Technical info
Meaning of the composition of the number: BALLAST = series 16000 = type M = indirect drive, 540 rpm The BALLAST pumps have automatic lubrication installed as standard The lubrication is applied by the manufacturer and can not be adjusted without the proper tool Always check whether the lubrication is actually working when the pump is switched on Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070 Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If, for example, a pump is driven directly by a tractor unit, it must be driven anti-clockwise
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
540 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
2,5 BAR
Crash protection system
Yes
Lubrication system type
Automatic
Nominal volume flow rate
16800 l/min
Diameter of hose connection
100 mm
Ballast air injection system
Yes
Safety valve connection diameter
2 Inch
Power requirement for max. vacuum
24 kW
Depression valve connection diameter
1-1/2 Inch
Manufacturer
Battioni Pagani
