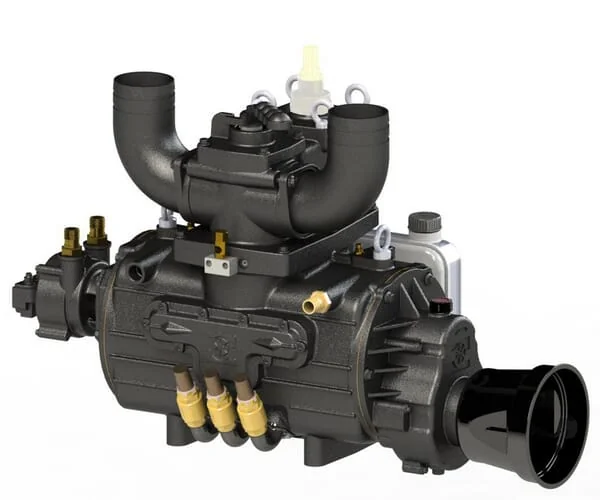

BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min
BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min
BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min
BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min
BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min

BATTIONI PAGANI - KPSB490MA100 - Vakuumpumpe 540 U/min

€4,227.04

(Excl. VAT)

Price

(Excl. VAT)

€4,227.04

Product Description

Item number breakdown: KPS = Model B = BALLAST system, air injection 490, 550, 670 = Series D = Direct driven, 1000 rpm M = Drive with gearbox, 540 rpm P = Pulley driven H = Hydraulic pump driven L = Rotation counter clockwise R = Rotation clockwise A = Automatic lubrication 100 = Ø hose connection, 100mm The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise.
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Pros
Liquid cooled housing with integrated water pump Extra air cooling (BALLAST air injection system) Comes standard with heat-resistant "Long Life" blades Automatic lubrication The pump is suitable for continuous operation in both vacuum and pressure modes Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards Easy blade wear check through inspection hole with wear indication mark A test report by serial number is delivered with each pump
Unit
Each
Weight
221 kg
Includes
Pumps are delivered without oil (art. BP5070) Pumps are supplied without cooling radiator
Vane type
Long life
Drive type
PTO 540 rpm
Max vacuum
0,95 BAR
Shaft diameter
1-3/8 Inch
Max. shaft rotation
540 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
Yes
Lubrication system type
Automatic
Nominal volume flow rate
13520 l/min
Diameter of hose connection
100 mm
Ballast air injection system
Yes
Power requirement for max. vacuum
19 kW
Depression valve connection diameter
1-1/2 Inch
Manufacturer
Battioni Pagani
