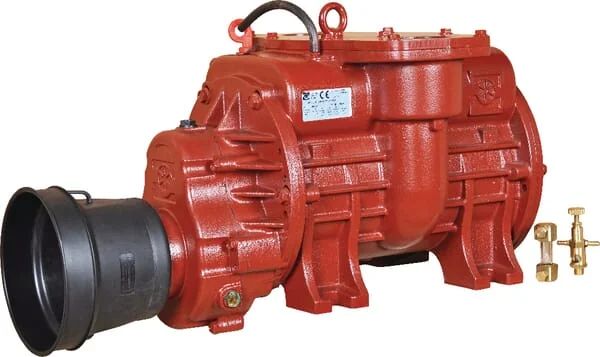

Battioni Pagani - MEC11000MSC - Mobile Vacuum Pump STD Battioni Pagani

SKU: battioni-pagani-mec11000msc

Battioni Pagani - MEC11000MSC - Mobile Vacuum Pump STD Battioni Pagani

€2,271.60€1,941.54 (Excl. VAT)

RRP:€2,692.25
Save €420.53
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,271.60

Brand
Battioni Pagani
Unit
Each
Height
450 mm
Weight
133 kg
Benefits
Minimum repair costs thanks to the unique automatic protection system As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Long life
Drive type
PTO 540 rpm
Max vacuum
0,95 BAR
Properties
The MEC II S.C. version can create positive pressure up to a maximum of 4 bar
Consists of
The S. C. version features a forced lubrication system Including PTO shaft cover The pumps are delivered without lubrication oil (item BP5070)
Total width
390 mm
Total length
740 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: MEC = series, 9000 = type, M = indirect drive 540 rpm, SC = reel compressor Reel compressors are equipped with a forced lubrication system that is set using dripper nozzles The lubrication system must be checked at all times to ensure proper function Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Application range
The MEC II S.C. version has been specially developed as a compressor to completely empty hose reels
Reservoir capacity
3 l
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
4 BAR
Crash protection system
Yes
Lubrication system type
Forced
Mounting holes diameter
22 mm
Mounting holes distance
246 mm247 mm
Nominal volume flow rate
11137 l/min
Diameter of hose connection
2-1/2 Inch
Ballast air injection system
No
Mounting holes to end distance
147 mm
Shaft centre to bottom distance
69 mm
Mounting holes to shaft end distance
346 mm
Shaft centre to left side end distance
195 mm
Shaft centre to right side end distance
195 mm
Manufacturer
Battioni Pagani

The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 1,909 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.
