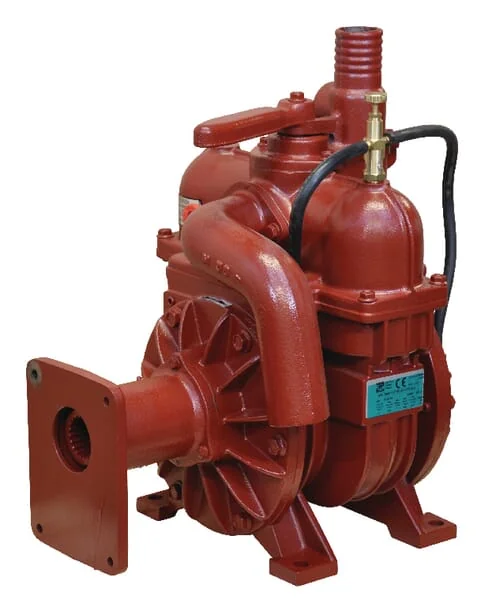

Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani
Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani
Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani
Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani
Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani
Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani

Battioni Pagani - MEC2000H - Vacuum Pump Hydraulic Drive Battioni Pagani

€1,227.86

(Excl. VAT)

Price

(Excl. VAT)

€1,227.86

Product Description

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
69 kg
CHeight
480 mm
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
Hydraulic
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
These pumps are supplied with standard vanes. Long-life vanes available on request Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (item BP5070) Including hydraulic base for mounting the hydraulic motor Without hydraulic motor and key bush
BTotal width
342 mm
ATotal length
456 mm
Technical info
Composition of the part numbers: MEC = series, 8000 = type, H = hydraulic drive On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Hydraulically driven pumps rotate clockwise. Anti-clockwise rotation available on request The direction of rotation is determined when the axle to be driven is aligned with the observer Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
1400 r/min
Direction of rotation
Clockwise (CW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Forced
HMounting holes diameter
15 mm
IMounting holes distance
227 mm172 mm
Nominal volume flow rate
2750 l/min
Ballast air injection system
No
DDiameter of hose connection
45 mm
GMounting holes to end distance
90 mm
LShaft centre to bottom distance
142 mm
Safety valve connection diameter
1-1/4 Inch
Hydraulic motor required capacity
38,5 l/min
Power requirement for max. vacuum
4,9 kW
Power requirement for max. pressure
7 kW
EMounting holes to shaft end distance
194 mm
KShaft centre to left side end distance
164 mm
XShaft centre to right side end distance
178 mm
Manufacturer
Battioni Pagani
