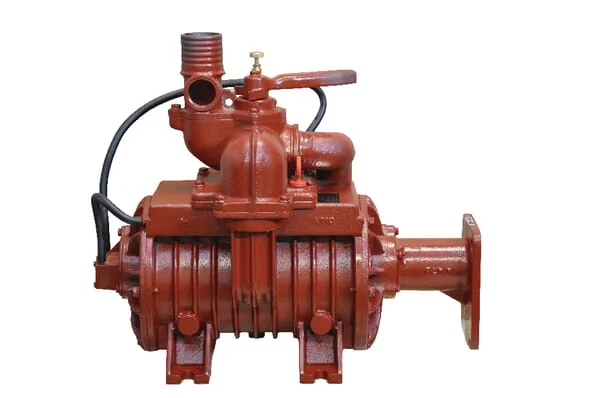

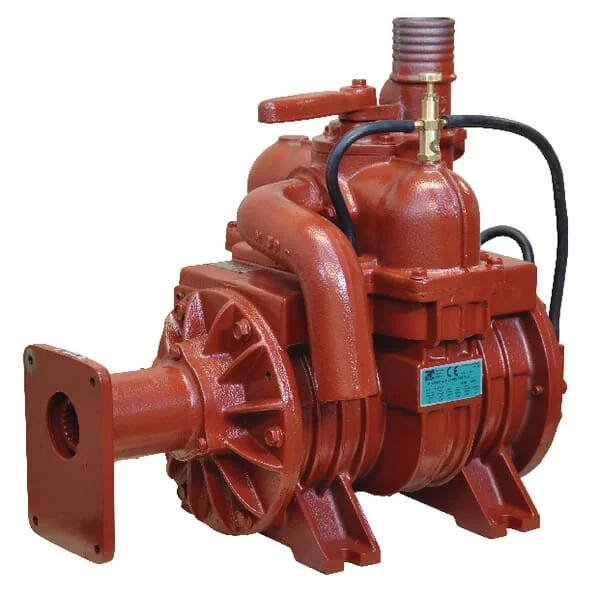

Battioni Pagani - MEC4000H - Vacuum Pump Hydraulic Drive Battioni Pagani

SKU: battioni-pagani-mec4000h

Battioni Pagani - MEC4000H - Vacuum Pump Hydraulic Drive Battioni Pagani

€1,520.13€1,299.26 (Excl. VAT)

RRP:€2,035.93
Save €515.91
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,520.13

Brand
Battioni Pagani
Unit
Each
Weight
93 kg
CHeight
480 mm
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
Hydraulic
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
These pumps are supplied with standard vanes. Long-life vanes available on request Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (item BP5070) Including hydraulic base for mounting the hydraulic motor Without hydraulic motor and key bush
BTotal width
342 mm
ATotal length
576 mm
Technical info
Composition of the part numbers: MEC = series, 8000 = type, H = hydraulic drive On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Hydraulically driven pumps rotate clockwise. Anti-clockwise rotation available on request The direction of rotation is determined when the axle to be driven is aligned with the observer Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
1400 r/min
Direction of rotation
Clockwise (CW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Forced
HMounting holes diameter
15 mm
IMounting holes distance
227 mm189 mm
Nominal volume flow rate
4350 l/min
Ballast air injection system
No
DDiameter of hose connection
60 mm
GMounting holes to end distance
142 mm
LShaft centre to bottom distance
142 mm
Safety valve connection diameter
1-1/4 Inch
Hydraulic motor required capacity
63,5 l/min
Power requirement for max. vacuum
8,1 kW
Power requirement for max. pressure
12 kW
EMounting holes to shaft end distance
245 mm
KShaft centre to left side end distance
164 mm
XShaft centre to right side end distance
178 mm
Manufacturer
Battioni Pagani

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 1,909 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.
