Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani
Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani
Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani
Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani
Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani
Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani

Battioni Pagani - MEC4000P - Vacuum Pump Pulley Battioni Pagani

€1,114.34

(Excl. VAT)

Price

(Excl. VAT)

€1,114.34

Product Description

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
90 kg
CHeight
479 mm
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
Pulley
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
These pumps are supplied with standard vanes. Long-life vanes available on request Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (item BP5070) Without pulley
BTotal width
342 mm
ATotal length
490 mm
Technical info
Composition of the item numbers: MEC = series, 8000 = type, P = pulley drive Pumps with an "L" in the item number must be driven anti-clockwise; pumps without an "L" in the item number must be driven clockwise On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation The direction of rotation is determined when the axle to be driven is aligned with the observer Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
1400 r/min
Direction of rotation
Clockwise (CW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Forced
HMounting holes diameter
15 mm
IMounting holes distance
227 mm189 mm
Nominal volume flow rate
4350 l/min
Diameter of hose connection
60 mm
Ballast air injection system
No
Mounting holes to end distance
119 mm
Shaft centre to bottom distance
142 mm
Safety valve connection diameter
1-1/4 Inch
Power requirement for max. vacuum
8,1 kW
Mounting holes to shaft end distance
182 mm
Shaft centre to left side end distance
164 mm
Shaft centre to right side end distance
178 mm
Manufacturer
Battioni Pagani

Similar items you might like

  • Battioni Pagani

    Battioni Pagani - MEC5 - Rotor MEC 4 Battioni Pagani

Battioni Pagani

€316.55

  • Battioni Pagani

    Battioni Pagani - MEC5000A - Vacuum Pump, Auto-Lube Battioni Pagani

    Battioni Pagani

    €1,529.63

  • Battioni Pagani

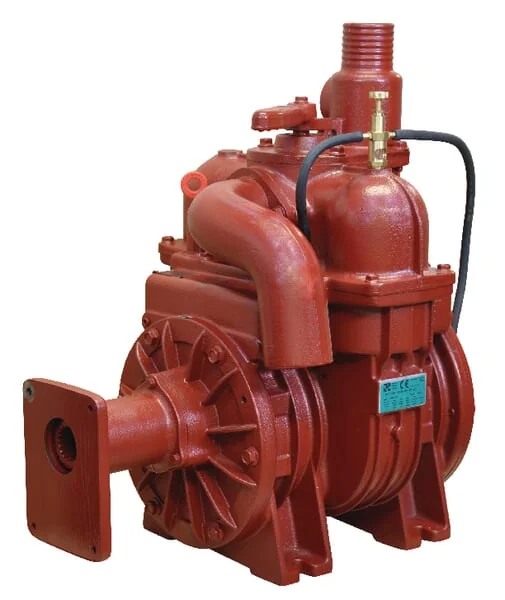

    Battioni Pagani - MEC5000H - Vacuum Pump Hydraulic Drive Battioni Pagani

    Battioni Pagani

    €1,603.17

  • Battioni Pagani

    Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani

    Battioni Pagani

    €1,356.94

  • Battioni Pagani

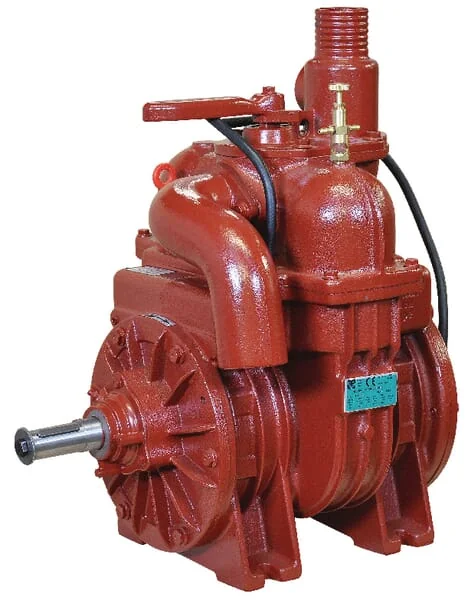

    Battioni Pagani - MEC5000P - Vacuum Pump Belt Drive Battioni Pagani

    Battioni Pagani

    €1,371.46

  • Battioni Pagani

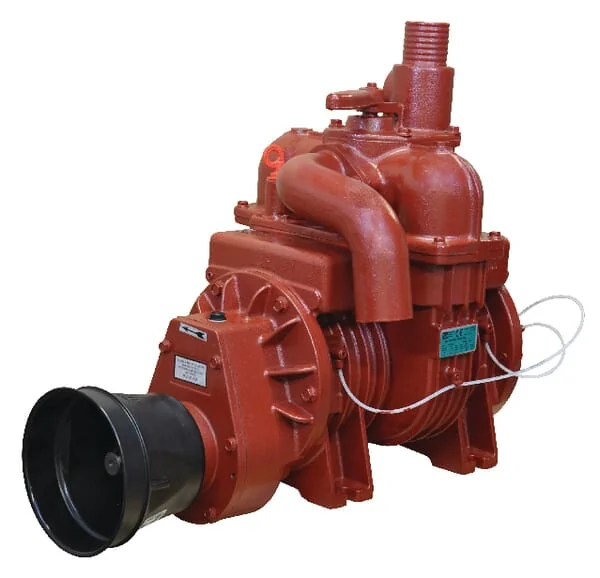

    Battioni Pagani - MEC6500A - Vacuum Pump, Auto-Lube Battioni Pagani

    Battioni Pagani

    €1,466.93

  • Battioni Pagani

    Battioni Pagani - MEC6500DL - Vacuum Pump Direct Drive CCW Battioni Pagani

    Battioni Pagani

    €1,521.32

  • Battioni Pagani

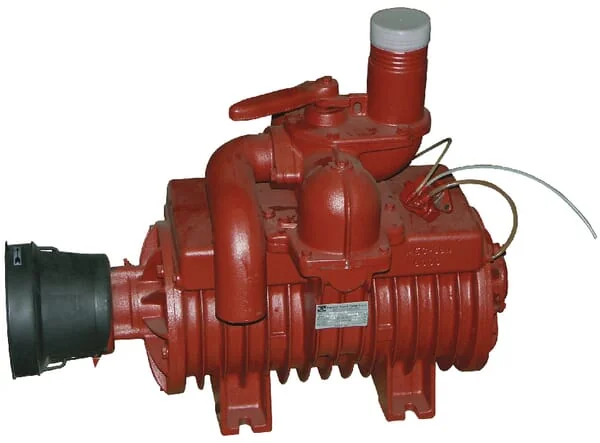

    Battioni Pagani - MEC6500DLA - Vacuum Pump Direct Drive CCW Auto-Lube Battioni Pagani

    Battioni Pagani

    €1,708.47

  • Battioni Pagani

    Battioni Pagani - MEC6500H - Vacuum Pump Hydraulic Drive Battioni Pagani

    Battioni Pagani

    €1,723.38

  • Battioni Pagani

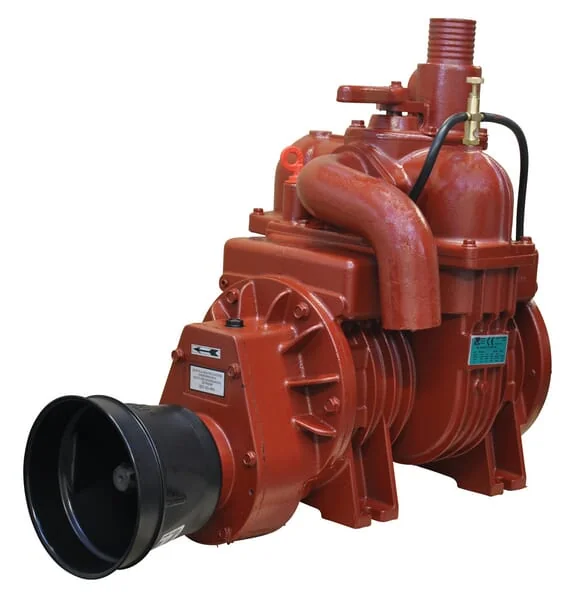

    Battioni Pagani - MEC6500M - Standard Vacuum Pump Battioni Pagani
