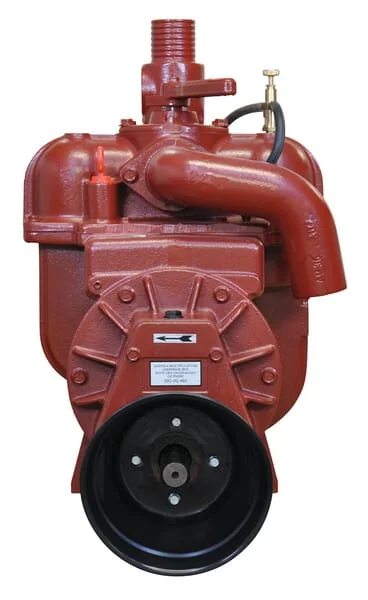

Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani
Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani
Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani
Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani
Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani
Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani

Battioni Pagani - MEC5000M - Standard Vacuum Pump Battioni Pagani

€1,390.02

(Excl. VAT)

Price

(Excl. VAT)

€1,390.02

Product Description

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
130 kg
OHeight
637 mm
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
PTO 540 rpm
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum Oil to be used for lubricating the vanes: genuine oil from B. P. Item number: BP5070
Consists of
These pumps are supplied with standard vanes ("Long-life" vanes available on request) Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (BP5070) Including PTO shaft cover
BTotal width
410 mm
NTotal length
623 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: MEC = series, 8000 = type, M = indirect drive 540 rpm, A = automatic lubrication On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Forced
IMounting holes distance
227 mm189 mm
MMounting holes diameter
15 mm
Nominal volume flow rate
6150 l/min
Ballast air injection system
No
DDiameter of hose connection
60 mm
GMounting holes to end distance
95 mm
JShaft centre to bottom distance
95 mm
Safety valve connection diameter
1-1/2 Inch
Power requirement for max. vacuum
11 kW
Power requirement for max. pressure
21 kW
EMounting holes to shaft end distance
304 mm
KShaft centre to left side end distance
195 mm
XShaft centre to right side end distance
215 mm
Manufacturer
Battioni Pagani
