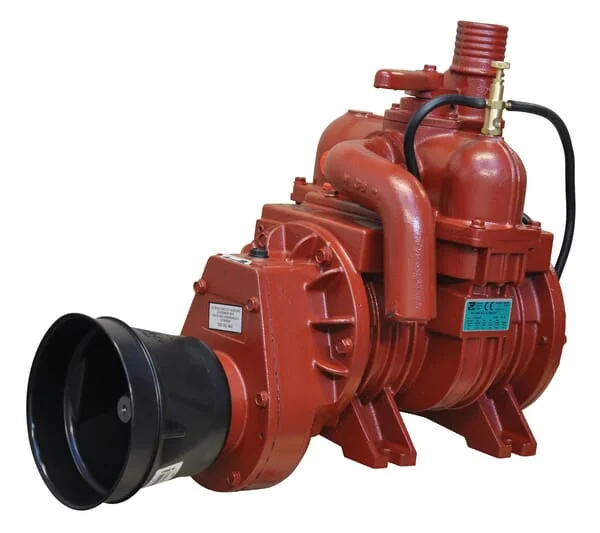

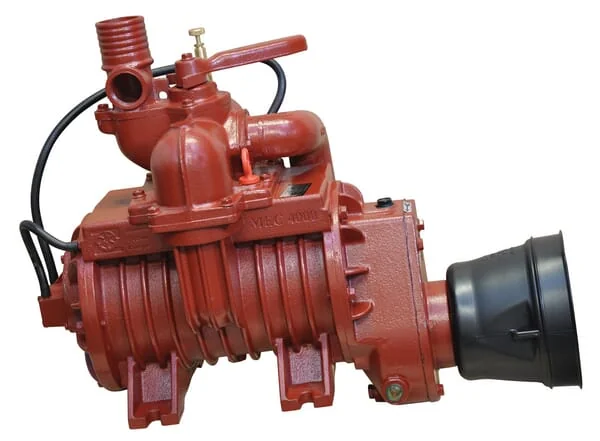

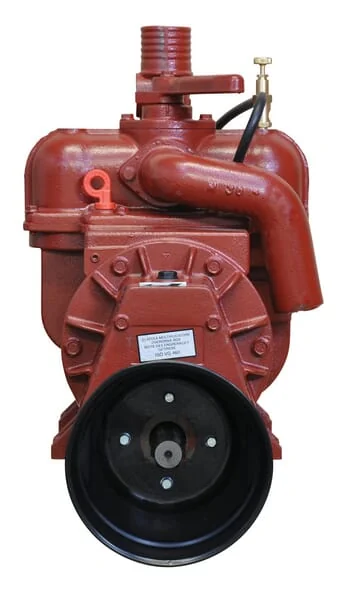

Battioni Pagani - MEC4000M - Standard Vacuum Pump Battioni Pagani

SKU: battioni-pagani-mec4000m

Battioni Pagani - MEC4000M - Standard Vacuum Pump Battioni Pagani

€1,160.24

(excl. VAT)
RRP:€1,349.28
Save €189.03

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€1,160.24

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 645 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.

Unit
Each
Weight
102 kg
OHeight
557 mm
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
PTO 540 rpm
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum Oil to be used for lubricating the vanes: genuine oil from B. P. Item number: BP5070
Consists of
These pumps are supplied with standard vanes ("Long-life" vanes available on request) Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (BP5070) Including PTO shaft cover
BTotal width
342 mm
NTotal length
606 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: MEC = series, 8000 = type, M = indirect drive 540 rpm, A = automatic lubrication On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Forced
IMounting holes distance
227 mm189 mm
MMounting holes diameter
15 mm
Nominal volume flow rate
4350 l/min
Ballast air injection system
No
DDiameter of hose connection
60 mm
GMounting holes to end distance
119 mm
JShaft centre to bottom distance
95 mm
Safety valve connection diameter
1-1/4 Inch
Power requirement for max. vacuum
9 kW
Power requirement for max. pressure
16 kW
EMounting holes to shaft end distance
264 mm
KShaft centre to left side end distance
164 mm
XShaft centre to right side end distance
178 mm
Manufacturer
Battioni Pagani
