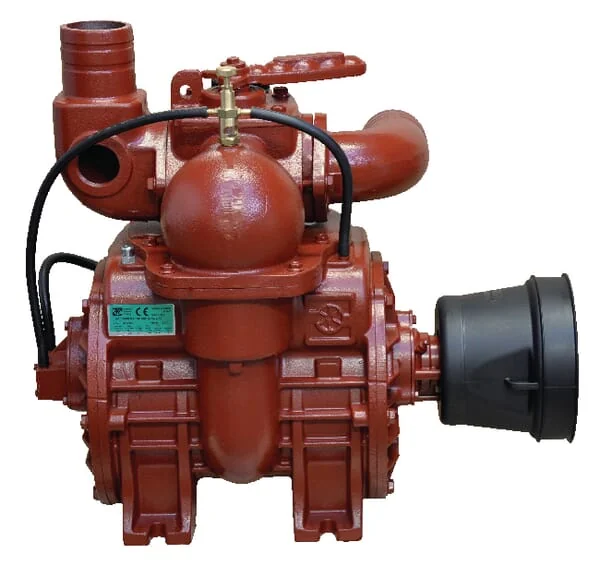

Battioni Pagani - MEC9000DL - Vacuum Pump Direct Drive ccw Battioni Pagani

SKU: battioni-pagani-mec9000dl

Battioni Pagani - MEC9000DL - Vacuum Pump Direct Drive ccw Battioni Pagani

€2,209.72€1,888.65 (Excl. VAT)

RRP:€3,261.08
Save €1,051.37
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,209.72

Brand
Battioni Pagani
Unit
Each
Weight
132 kg
GHeight
575 mm
Benefits
Minimum repair costs thanks to the unique automatic protection system As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Long life
Drive type
PTO 1000 rpm without gearbox
Max vacuum
0,95 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Including PTO shaft cover Without pressure relief valve (item 0200013) and vacuum valve (item 0155513) The pumps are delivered without lubrication oil (item BP5070)
OTotal width
390 mm
ETotal length
610 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: MEC = series, 9000 = type, D = direct drive 1000 rpm, L = anti-clockwise rotation, R = clockwise rotation, A = automatic lubrication, B = ballast system On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Reservoir capacity
2,5 l
Max. shaft rotation
1400 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
Yes
Lubrication system type
Forced
FMounting holes diameter
22 mm
Nominal volume flow rate
9030 l/min
B,LMounting holes distance
189 mm246 mm
Ballast air injection system
No
D,PDiameter of hose connection
80 mm
CMounting holes to end distance
141 mm
IShaft centre to bottom distance
164 mm
Safety valve connection diameter
2 Inch
Power requirement for max. vacuum
16 kW
Power requirement for max. pressure
25 kW
Depression valve connection diameter
1-1/2 Inch
AMounting holes to shaft end distance
280 mm
MShaft centre to left side end distance
195 mm
NShaft centre to right side end distance
195 mm
Manufacturer
Battioni Pagani

The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar. MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 1,909 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.
