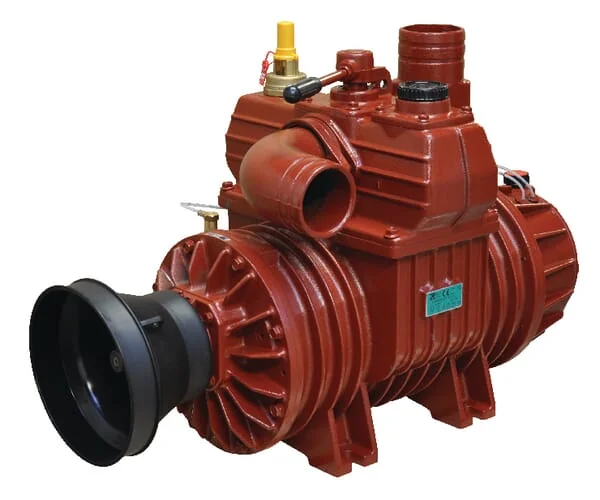

Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube
Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube
Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube
Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube
Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube
Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube

Battioni Pagani - STAR84DLA - Vacuum Pump Direct Drive Auto Lube

€2,594.04

(Excl. VAT)

Price

(Excl. VAT)

€2,594.04

Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
239 kg
Vane type
Standard
Drive type
PTO 1000 rpm without gearbox
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Including PTO shaft cover Including vacuum valve Without pressure relief valve (item 0200013) These pumps are supplied with standard vanes Long-life vanes available on request Including swivelling connection pipes The pumps are delivered without lubrication oil (item BP5070)
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: STAR = series, 72 = type, D = direct drive 1000 rpm, L = anti-clockwise rotation, A = automatic lubrication On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles • Forced lubrication available on request On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Directly driven pumps (DL) must be driven anti-clockwise. Clockwise rotation available on request The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) STAR replaces the Agri- and Euro series
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
1200 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Automatic
Nominal volume flow rate
14800 l/min
Ballast air injection system
No
Power requirement for max. vacuum
28 kW
Manufacturer
Battioni Pagani
