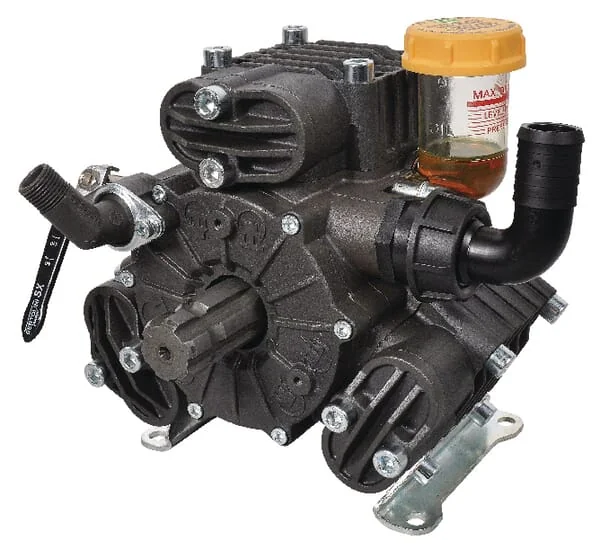

Bertolini - 236005973VC - PA 530-VC Bertolini Pump
Bertolini - 236005973VC - PA 530-VC Bertolini Pump
Bertolini - 236005973VC - PA 530-VC Bertolini Pump
Bertolini - 236005973VC - PA 530-VC Bertolini Pump
Bertolini - 236005973VC - PA 530-VC Bertolini Pump

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Bertolini - 236005973VC - PA 530-VC Bertolini Pump

Bertolini - 236005973VC - PA 530-VC Bertolini Pump

€531.87

(Excl. VAT)

Price

(Excl. VAT)

€531.87

Product Description

Pre-set diaphragm washer and diaphragm bolt made up of AISI 316 stainless steel New sealing system between crankcase / head and check valves Oversized suction and pressure circuits create a smooth flow of the liquid The diaphragms are specially designed to never lose form Exclusive check valve design: spheric section shaped made up of AISI 316 stainless steel Oversized oil sight glass
Bertolini
Bertolini manufactures agricultural machinery components and hydraulic systems for tractors and implements. The brand specializes in gearboxes, PTO shafts, and transmission parts for power transfer applications. Its products are used in tillage equipment, mowers, and other farm machinery. Shop more than 304 genuine Bertolini spare parts.

Product Details

Brand
Bertolini
Unit
Each
Power
4 kW
Width
335 mm
Height
256 mm
Length
230 mm
Weight
14 kg
Benefits
Corrosion proof High reliability and long life operation No loss of pressure The diaphragms can also handle chemicals Delivering high volumetric efficiencies Provides constant lubrication and easy reading of the oil level
Flow max.
54 l/min
Ø Intake
30 mm
Ø Outlet
G 1/2 Inch
Properties
Die cast anodized aluminium crankcase incorporating a new cooling system Exclusive design of the internal shaping of the head to ensure a good suction capability Head and manifold made of die cast anodized aluminium Parts that come in contact with the spray liquid are made of anodized aluminium
Shaft type
1 3/8" (6)
Drive shaft
1 3/8 Inch
Oil type SAE
30,00
Pressure max.
40 BAR
Rotation max.
550 r/min
Pumping height
3 m
Oil volume max.
0,5 l
Temperature max.
60 °C
Application range
For insecticides, pesticides, fungicides, etc.
Pumping height max.
1.5 m
Material piston diaphragms
BUNA-N
Manufacturer
Bertolini
