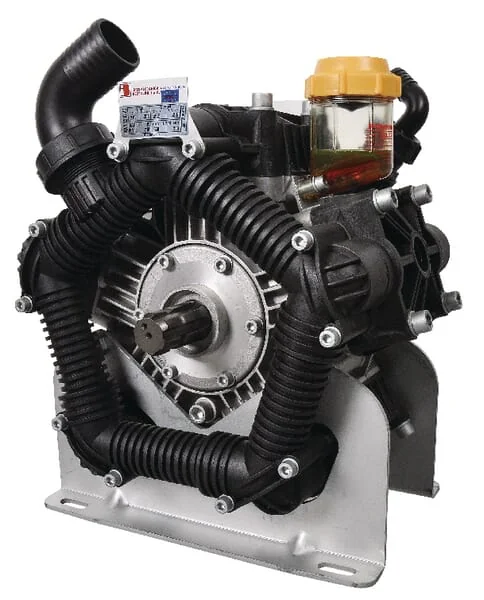

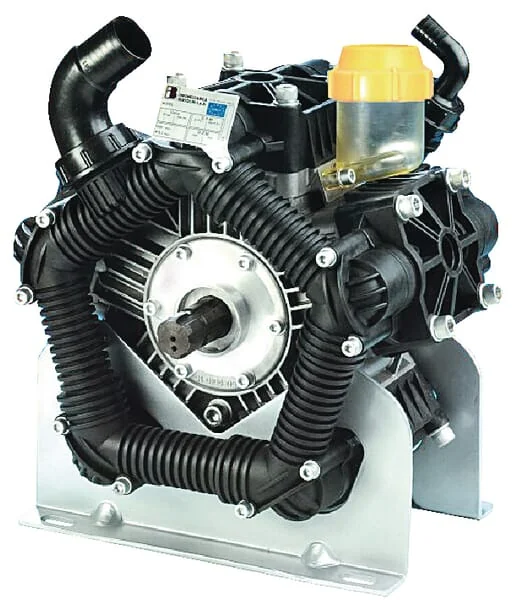

Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini
Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini
Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini
Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini
Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping

Pay Securely with

Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini

Bertolini - 556000973VD - Pump Poly 2210-VD Bertolini

€1,179.85

(Excl. VAT)

Price

(Excl. VAT)

€1,179.85

Product Description

Pre-calibrated diaphragm washer and diaphragm bolt made up of AISI 316 stainless steel Exclusive check valve design: spheric section shaped made up of AISI 316 stainless steel Special "Dacromet"® treatment on head bolts and mounting rails
Bertolini
Bertolini manufactures agricultural machinery components and hydraulic systems for tractors and implements. The brand specializes in gearboxes, PTO shafts, and transmission parts for power transfer applications. Its products are used in tillage equipment, mowers, and other farm machinery. Shop more than 304 genuine Bertolini spare parts.

Product Details

Brand
Bertolini
Unit
Each
Power
6 kW
Width
400 mm
Height
417 mm
Length
308 mm
Weight
33 kg
Benefits
Abrasion and corrosion proof Delivering high volumetric efficiencies Wide mechanical and chemical resistance and no maintenance
Flow max.
210 l/min
Ø Intake
50 mm
Ø Outlet
25 mm
Properties
Double body head in polypropylene incorporating a die cast aluminium core Die cast aluminium crankcase incorporating a new cooling system Connecting rods of special bronze alloy Crankshaft stroke reduced, which increases diaphragm life, because the diaphragms are not stressed Exclusive technology of the piston profile to reduce friction on the diaphragm Manifold made of polypropylene
Shaft type
1 3/8" (6)
Drive shaft
1 3/8 Inch
Oil type SAE
30,00
Pressure max.
15 BAR
Rotation max.
550 r/min
Pumping height
3 m
Oil volume max.
3,25 l
Temperature max.
60 °C
Application range
For insecticides, pesticides, fungicides and weed killing products For N.Phuric acid, solvents, acids, hydrocarbons, alcohol, etc.
Pumping height max.
1.5 m
Material piston diaphragms
Desmopan
Manufacturer
Bertolini
