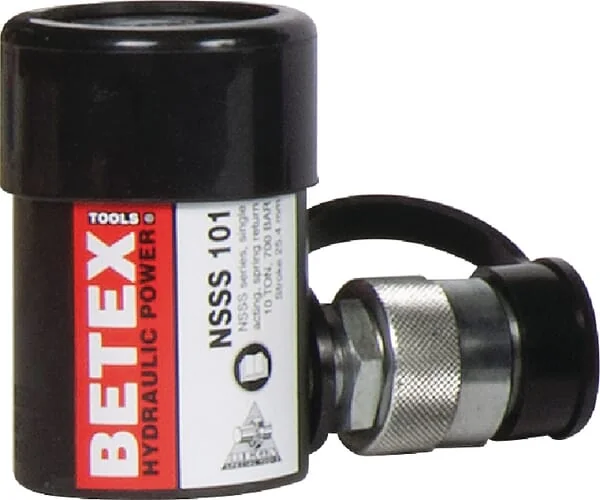

Betex - 8230101 - Cylinder Nsss 101

Betex - 8230101 - Cylinder Nsss 101

Betex - 8230101 - Cylinder Nsss 101

Betex - 8230101 - Cylinder Nsss 101

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Betex - 8230101 - Cylinder Nsss 101

Betex - 8230101 - Cylinder Nsss 101

€407.21

(Excl. VAT)

Price

(Excl. VAT)

€407.21

Number of products

Product Details

Brand

Unit

Each

Stroke

25 mm

Weight

1,8 kg

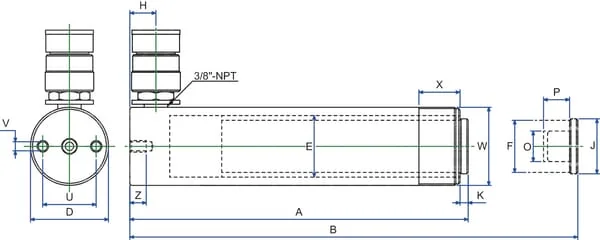

AMin. length

90 mm

BMax. length

115,4 mm

Oil capacity

36,5 cm³

Max. capacity

10 t

EInside diameter

43 mm

Outside diameter

57 mm

XCylinder head length

30 mm

UMin. mounting holes distance

39 mm

Mounting type - rod connection

No mounting

WCylinder head outside diameter

57 mm

Mounting type - cylinder connection

No mounting

Mounting thread type - rod connection

UN

Mounting thread 2 type - rod connection

UN

Mounting thread diameter - rod connection

2-1/4 Inch

DMounting thread per inch - rod connection

14

Mounting thread 2 diameter - rod connection

10 Inch

DMounting thread per inch - cylinder connection

18

VMounting thread diameter - cylinder connection

5/16 Inch

Mounting thread 2 thread per inch - rod connection

24

HOil connection centre to cylinder end distance - cylinder side

19 mm

Manufacturer

Betex
