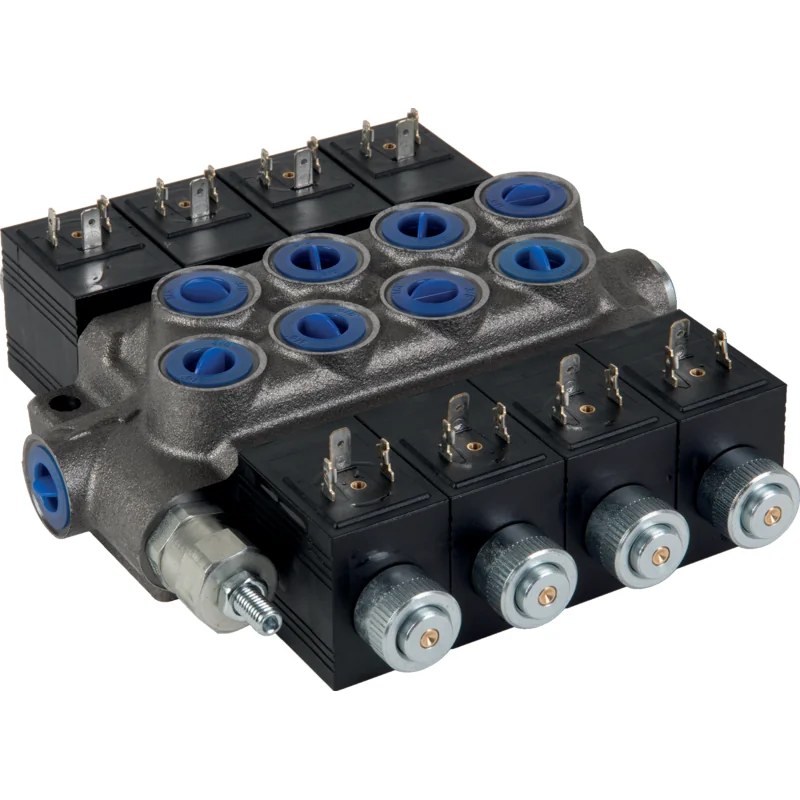

Bondioli Pavesi - DNM35/4 - Monoblock Valve

SKU: bondioli-pavesi-dnm35-4

Bondioli Pavesi - DNM35/4 - Monoblock Valve

€706.07€603.48 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€706.07

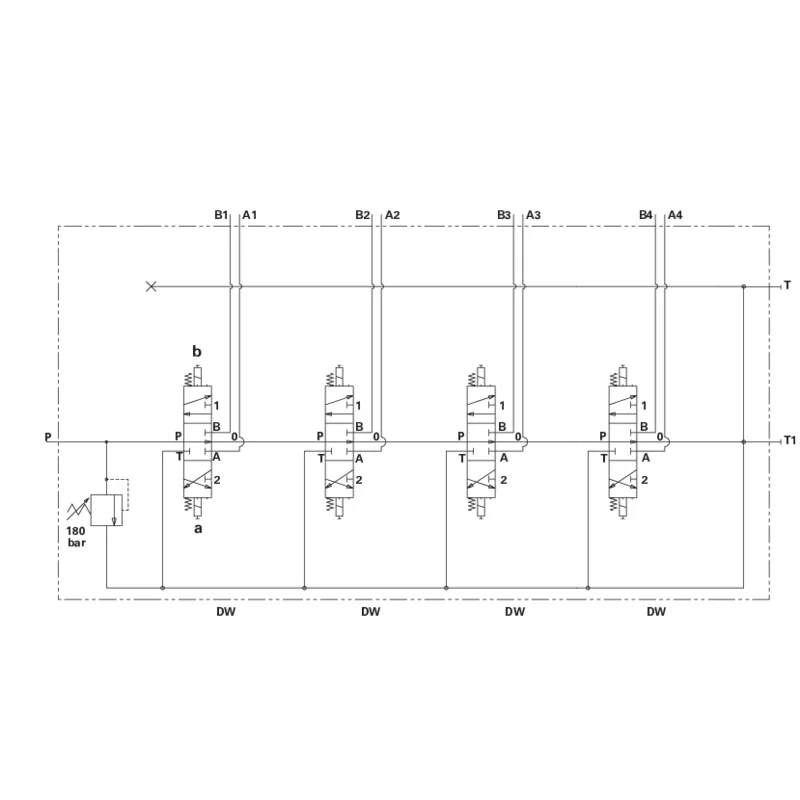

Electromagnetically actuated monoblock valve with 100% duty cycle and pressure relief valve, spool sealed, thus low leakage permissible. Function: 4 x double-acting with spring return. Connections: P Pressure inlet T Return T1 (PW) Pressure continuation after conversion A, B to consumer. Attention: Pressure continuation possible by installing pressure continuation plugs.
Bondioli Pavesi
Bondioli-pavesi produces power transmission systems and components for agricultural machinery. The brand specializes in gearboxes, PTO shafts, and hydraulic pumps used in tractors and implements. Its solutions ensure reliable power transfer in demanding farming operations. Shop more than 2,722 genuine Bondioli-pavesi spare parts.

Brand
bondioli-pavesi

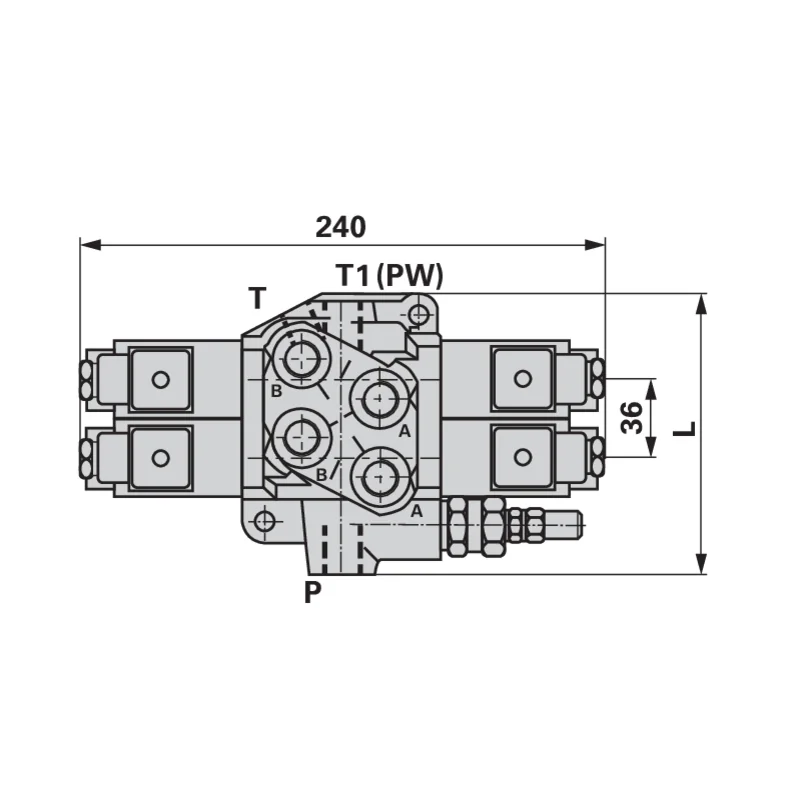

Length (mm)
205
Temperature Range
-20 bis +80 °C
Number of Sections
4
Max Flow Rate (l/min)
25
Connection Thread A, B
G 3/8"
Max Return Pressure (bar)
50
Connection Thread P, T, PW
G 3/8"
Max Operating Pressure (bar)
180
Manufacturer
bondioli-pavesi
