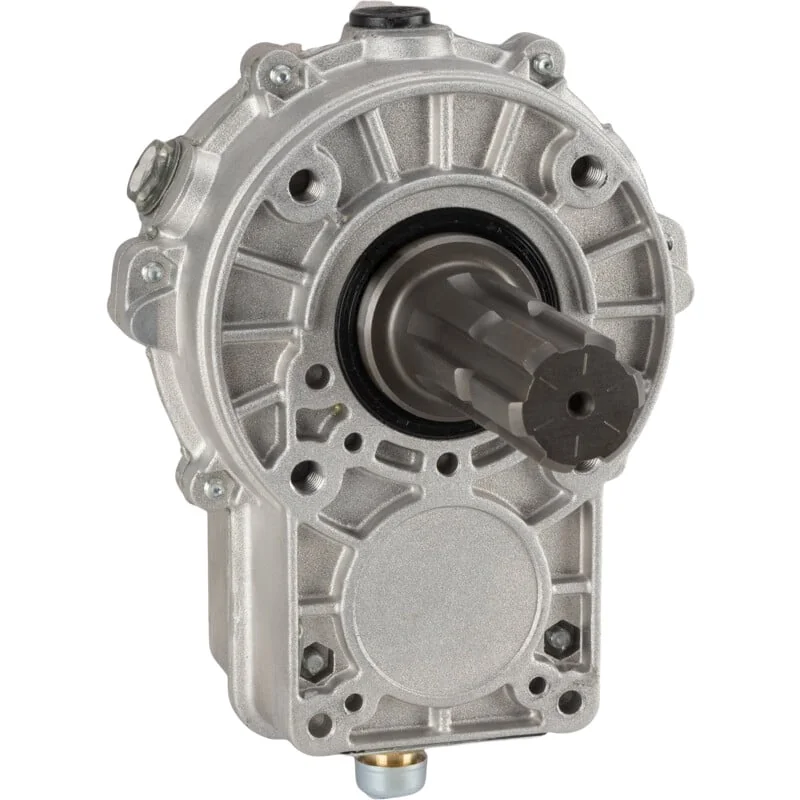

Bondioli Pavesi - ZBMS6072001038S - Spur Gear MP10

SKU: bondioli-pavesi-zbms6072001038s

Bondioli Pavesi - ZBMS6072001038S - Spur Gear MP10

€351.40€300.34 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€351.40

Brand
bondioli-pavesi
Oil Type
SAE90 EP
Gear Ratio
1:3.8
N1 (1/min.)
540
N2 (1/min.)
2052
Torque (Nm)
540 1/min: n1 = 156, n2 = 42
Transmission
1:3.8
Axle Spacing (mm)
76
Oil Capacity (kg)
0.14
Speed Limit (rpm)
3000
Max Power (HP / kW)
540 1/min.: 12 / 8.8
Gear Pump Connection
DIN5482 A25x22 z14
Oil Filling Quantity
approx. 0.14 kg
Manufacturer
bondioli-pavesi

This reversing gearbox features a cast aluminum housing and case-hardened gearing. It has a connection for gear pumps and a speed limit of approximately 3000 rpm.
