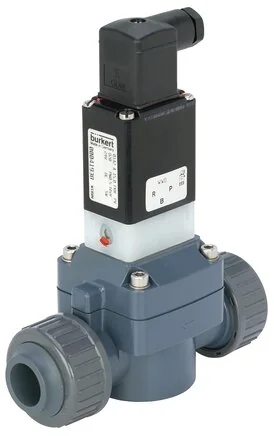

Burkert - 0142-A-15,0-AA-PV-KM25-230/56--41911 - 2/2-Way Solenoid Valve

SKU: burkert-0142-a-15-0-aa-pv-km25-230-56-41911

Burkert - 0142-A-15,0-AA-PV-KM25-230/56--41911 - 2/2-Way Solenoid Valve

€716.13€612.08 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€716.13

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
5
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Line Connection 2 Type
Klebemuffe
Line Connection 2 Size DN
DN 15
Nominal Pressure Min (bar)
0,5
Pilot Control Seal Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Sealing To Outside Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
50
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
40
Main Valve Nominal Size 1 (inch)
9/16
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
15
Nominal Pressure Max (Liquid) (bar)
6
Main Valve Material, Media-contacting
PVC (Polyvinylchlorid)
Pilot Control Material, Media Contact
PVDF (Polyvinylidenfluorid)
EAN
4053913001202
Manufacturer
Burkert
