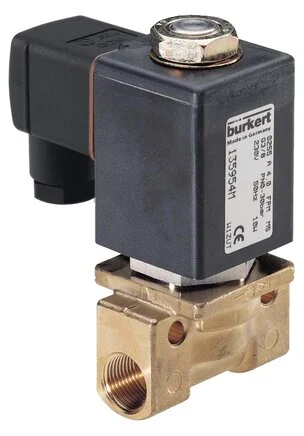

Burkert - 0255-A-03,0-EF-MS-GM82-024/DC--52872 - 2/2-Way Solenoid Valve

SKU: burkert-0255-a-03-0-ef-ms-gm82-024-dc-52872

Burkert - 0255-A-03,0-EF-MS-GM82-024/DC--52872 - 2/2-Way Solenoid Valve

€239.79€204.95 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€239.79

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Coil Size (mm)
40
Rated Power (W)
12
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Valve Seat Material
Edelstahl
Material - Seal Seat
PTFE (Polytetrafluorethylen)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
Messing und Edelstahl
Seat Seal Material Category
Kunststoffe
Medium Temperature Max (°C)
180
Medium Temperature Min (°C)
-40
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
3
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
