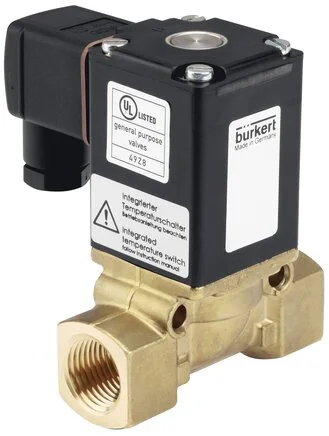

Burkert - 0290-A-25,0-AA-MS-GM86-024/UC--57155 - 2/2-Way Solenoid Valve

SKU: burkert-0290-a-25-0-aa-ms-gm86-024-uc-57155

Burkert - 0290-A-25,0-AA-MS-GM86-024/UC--57155 - 2/2-Way Solenoid Valve

€472.93€404.21 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€472.93

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Coil Size (mm)
49
Rated Power (W)
100
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Pilot Control Seal Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Sealing To Outside Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
-30
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
25
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1
Main Valve Material, Media-contacting
Messing
EAN
4053913002087
Manufacturer
Burkert
