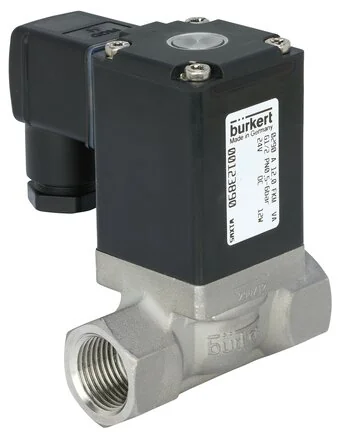

Burkert - 0290-A-25,0-FF-VA-GM86-024/UC--65542 - 2/2-Way Solenoid Valve

SKU: burkert-0290-a-25-0-ff-va-gm86-024-uc-65542

Burkert - 0290-A-25,0-FF-VA-GM86-024/UC--65542 - 2/2-Way Solenoid Valve

€1,298.97€1,110.23 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,298.97

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Coil Size (mm)
49
Rated Power (W)
100
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Pilot Control Seal Material
FKM (Fluorkautschuk)
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
25
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1
Main Valve Material, Media-contacting
Edelstahl
EAN
4053913002384
Manufacturer
Burkert
