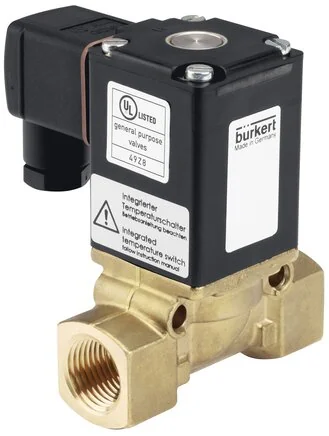

Burkert - 0290-A-65,0-FF-MS-GM90-024/DC--120460 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-0290-a-65-0-ff-ms-gm90-024-dc-120460

Burkert - 0290-A-65,0-FF-MS-GM90-024/DC--120460 - 2/2-Way Solenoid Valve, Servo Controlled

€1,311.92€1,121.30 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,311.92

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Coil Size (mm)
72
Rated Power (W)
30
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Pilot Control Seal Material
FKM (Fluorkautschuk)
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
120
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
2 1/2
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
65
Nominal Pressure Max (Liquid) (bar)
12
Line Connection 2 Thread Designation
2 1/2
Main Valve Material, Media-contacting
Messing
EAN
4053913035405
Manufacturer
Burkert
