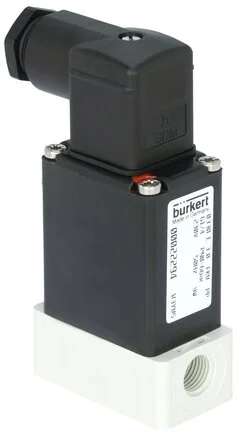

Burkert - 0330-A-05,0-FF-PP-GM82-230/56--123967 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0330-a-05-0-ff-pp-gm82-230-56-123967

Burkert - 0330-A-05,0-FF-PP-GM82-230/56--123967 - 2/2-Way Solenoid Valve, Direct Acting

€290.16€248.00 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€290.16

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Valve Seat Material
PP (Polypropylen)
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
-1
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
150
Main Valve Nominal Size 1 (inch)
3/16
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
5
Nominal Pressure Max (Liquid) (bar)
1
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
PP (Polypropylen)
EAN
4053913035757
Manufacturer
Burkert
