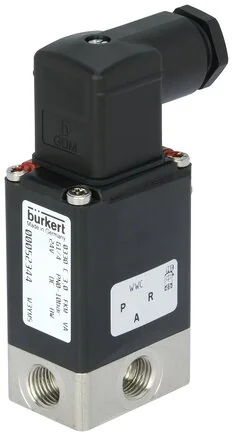

Burkert - 0330-C-02,0-BB-VA-GM82-012/DC--302524 - 3/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0330-c-02-0-bb-va-gm82-012-dc-302524

Burkert - 0330-C-02,0-BB-VA-GM82-012/DC--302524 - 3/2-Way Solenoid Valve, Direct Acting

€530.49€453.41 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€530.49

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Rated Power (W)
8
Mode Of Operation
C - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC), Arbeitsanschluss 2 (A/OUT) nach Anschluss 3 (R/NO) offen
Valve Seat Material
Edelstahl
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
5/64
Voltage Max. / Rated Voltage (V)
12
Voltage Min. / Rated Voltage (V)
12
Main Valve Nominal Size 1 (P) (mm)
2
Main Valve Nominal Size 3 (R) (mm)
2
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Edelstahl
EAN
4053913079171
Manufacturer
Burkert
