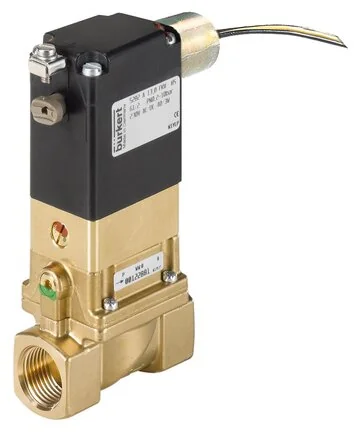

Burkert - 5282-00-A25,0BBMSGM86-0-230/UC-355248 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-5282-00-a25-0bbmsgm86-0-230-uc-355248

Browse all parts
Burkert - 5282-00-A25,0BBMSGM86-0-230/UC-355248 - 2/2-Way Solenoid Valve, Servo Controlled

€842.77€720.32 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€842.77

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Rated Power (W)
40
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0,2
Pilot Control Seal Material
NBR (Nitrilkautschuk)
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
60
Ambient Temperature Min (°C)
-40
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
25
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1
Main Valve Material, Media-contacting
Messing
Pilot Control Material, Media Contact
Messing
Manufacturer
Burkert
