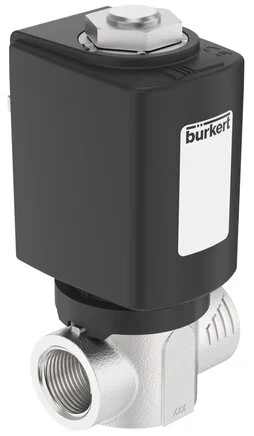

Burkert - 6027-A01,0TFVAGM82-K-230/AC-16-267229 - 2/2-Way Solenoid Valve

SKU: burkert-6027-a01-0tfvagm82-k-230-ac-16-267229

Browse all parts
Burkert - 6027-A01,0TFVAGM82-K-230/AC-16-267229 - 2/2-Way Solenoid Valve

€802.48€685.88 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€802.48

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
42
Rated Power (W)
16
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Valve Seat Material
PEEK (Polyetheretherketon)
Material - Seal Seat
Oxidkeramik
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Technische Keramik
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-10
Line Connection 2 Thread Type
G
Nominal Pressure (DIN EN 1333)
PN 250
Main Valve Nominal Size 1 (inch)
1/32
Nominal Pressure Max (Gas) (bar)
250
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
1
Nominal Pressure Max (Liquid) (bar)
250
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Edelstahl
EAN
4053913063750
Manufacturer
Burkert
