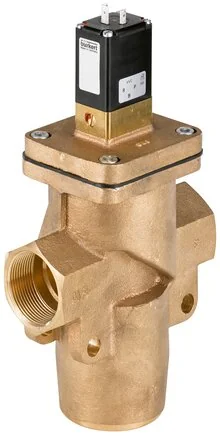

Burkert - 6430-C40,0BBRGGM88-0-024/DC-08-351247 - 3/2-Way Solenoid Valve, Servo Piston

SKU: burkert-6430-c40-0bbrggm88-0-024-dc-08-351247

Browse all parts
Burkert - 6430-C40,0BBRGGM88-0-024/DC-08-351247 - 3/2-Way Solenoid Valve, Servo Piston

€2,391.25€2,043.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,391.25

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Rated Power (W)
8
Mode Of Operation
C - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC), Arbeitsanschluss 2 (A/OUT) nach Anschluss 3 (R/NO) offen
Valve Seat Material
Messing
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
0
Nominal Pressure Min (bar)
1
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
0
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1 1/2
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
40
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1 1/2
Main Valve Material, Media-contacting
Rotguss
Pilot Control Material, Media Contact
Messing
EAN
4053913030318
Manufacturer
Burkert
