Camozzi - 63MP2C040A0200R - Camozzi Cylinder Series 63

SKU: camozzi-63mp2c040a0200r

Camozzi - 63MP2C040A0200R - Camozzi Cylinder Series 63

€104.07€88.95 (Excl. VAT)

RRP:€145.12
Save €41.06

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€104.07

Brand
Camozzi
Part Numbers
63MP2C040A0200R
Type
Double acting
Unit
Each
Width
55 mm
Stroke
200 mm
Min. length
335 mm
Damping type
Pneumatic - both sides - adjustable
Rod diameter
16 mm
Bore diameter
40 mm
Rod wrench size
13.0 mm
Outside diameter
16 mm
Sealing material
Nitrile rubber [NBR]
Cylinder nut wrench size
19.0 mm
Cylinder head flange width
5 mm30 mm
Cylinder head flange diameter
35 mm
Housing front mounting holes length
16 mm
Cylinder length without rod and head
305 mm
Housing side mounting holes distance
38 mm
Mounting thread type - rod connection
Metric
Mounting thread pitch - rod connection
1.25 mm
Housing side mounting holes thread type
G Metric
Mounting thread length - rod connection
24 mm
Mounting thread diameter - rod connection
M12
Housing side mounting holes thread diameter
M6
Housing front mounting holes thread diameter
M6
Manufacturer
Camozzi
EAN
8051707163361

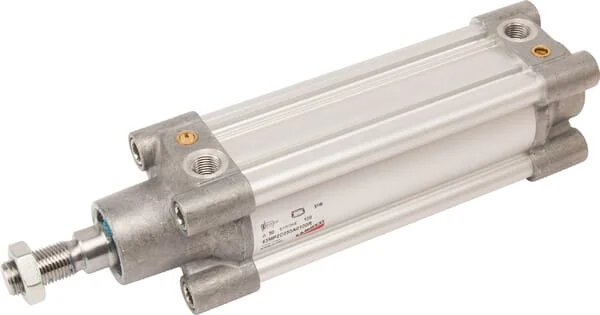

The Camozzi Series 63 cylinder with part number 63MP2C040A0200R is a double-acting pneumatic cylinder with adjustable pneumatic cushioning on both sides. It is built with an NBR sealing material and has a metric thread connection on the piston rod side.
