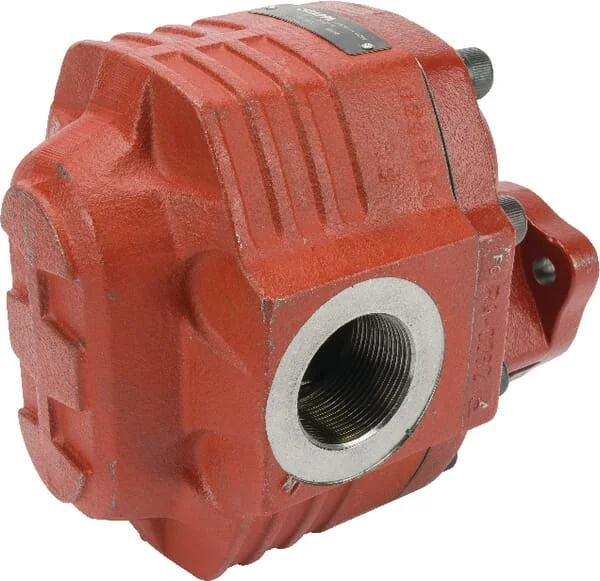

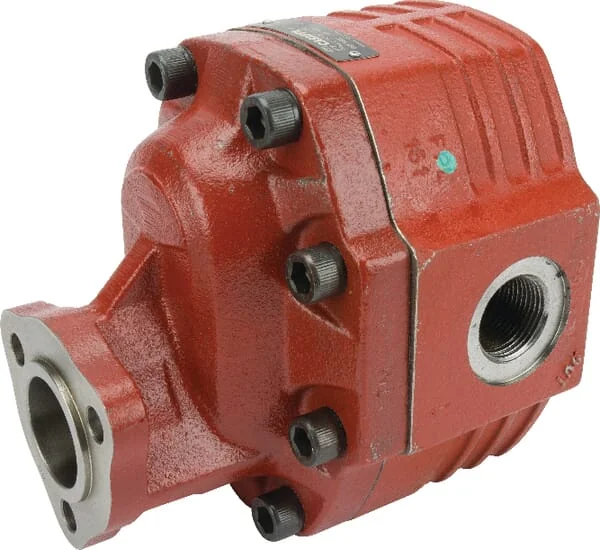

Casappa - FP40133D - PUMP FP40133D0-19T1-LGH/GF-N

OEM Supplier

SKU: casappa-fp40133d

Casappa - FP40133D - PUMP FP40133D0-19T1-LGH/GF-N

€731.93

(excl. VAT)
RRP:€1,061.42
Save €329.46

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€731.93

Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 566 genuine Casappa spare parts.

Brand
Casappa
Part Numbers
fp40133d
Unit
Each
Details
High performance even at low speeds Can be mounted directly on the PTO shaft
Benefits
Wide range of applications Compact design
Properties
Different connection positions Low noise emission Customer-specific design possible
Shaft type
Splined
Flange code
T1
Displacement
134,03 cm³/rev
Sealing type
Standard
Port position
Side
AHousing length
213,5 mm
Housing material
Steel
Long description
Formula 40
Max pressure peak
260 BAR
Mounting diameter
52 mm
Max rotation speed
2500 r/min
Main port thread type
G
Pressure port thread type
G
CMain port thread diameter
1 Inch
Prefered rotation direction
Clockwise (CW)
Pressure port thread diameter
1-1/2 Inch
Flange and back cover material
Steel
Max. continous working pressure
220 BAR
Max intermittend working pressure
250 BAR
BConnection port to flange distance
138,5 mm
Manufacturer
Casappa
