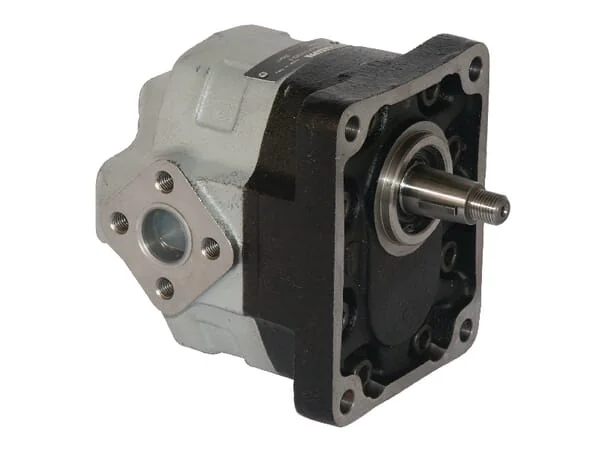

Casappa - KP3034D083E3 - Pump Led/Eb
Casappa - KP3034D083E3 - Pump Led/Eb
Casappa - KP3034D083E3 - Pump Led/Eb
Casappa - KP3034D083E3 - Pump Led/Eb
Casappa - KP3034D083E3 - Pump Led/Eb
Casappa - KP3034D083E3 - Pump Led/Eb

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping

Pay Securely with

Casappa - KP3034D083E3 - Pump Led/Eb

Casappa - KP3034D083E3 - Pump Led/Eb

€493.31

(Excl. VAT)

Price

(Excl. VAT)

€493.31

Product Description

High operating pressure: High efficiency at high temperatures Solid and compact design
Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 565 genuine Casappa spare parts.

Product Details

Brand
Casappa
Unit
Each
Benefits
Long service life Wide range of applications Low space requirement
Properties
Low noise emission Customer-specific design possible
Shaft type
Tapered
Flange code
E3
Displacement
34,56 cm³/rev
Sealing type
Standard
Port position
Side
Housing length
138 mm
Flange type norm
European
Housing material
Steel
Application range
Mobile applications Industrial applications
Max pressure peak
300 BAR
Mounting diameter
50,8 mm
Max rotation speed
3000 r/min
Shaft cone size code
1:8
Number of mounting holes
4
Prefered rotation direction
Clockwise (CW)
Flange and back cover material
Steel
Max. continous working pressure
260 BAR
Max intermittend working pressure
280 BAR
BConnection port to flange distance
90 mm
DSuction port bolts circle diameter
51 mm
EPressure port bolts circle diameter
40 mm
Manufacturer
Casappa
