Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El
Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El
Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El
Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El
Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El
Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El

Casappa - PLM103R81E1 - Motor Plm10.3,15r0-81e1-Lba/Bb-N-El

€189.83

(Excl. VAT)

Price

(Excl. VAT)

€189.83

Product Description

European flange Tapered shaft 1:8 European front flange Spigot 25.4mm Drain connection 1/8" BSP, connect to free return, max. : 5 bar Limited axial and radial loads For chain and belt drives, it is necessary to use a support bearing
Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 566 genuine Casappa spare parts.

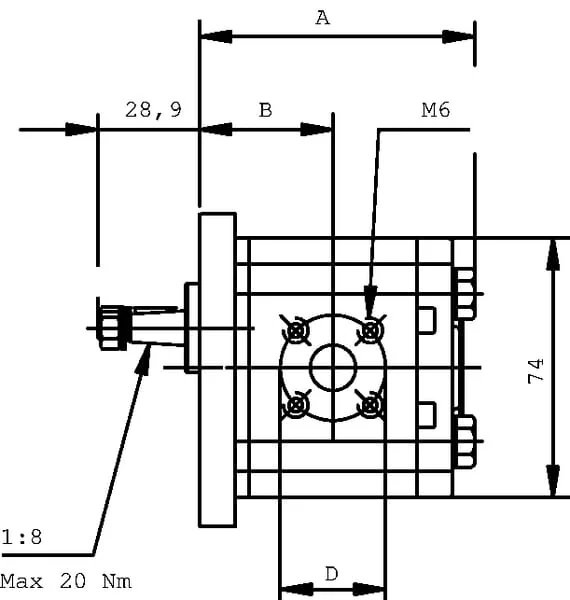

Product Details

Brand
Casappa
B
35 mm
D
30 mm
E
30 mm
Note
Always connect leakage oil line
Pros
Versatile for heavy-duty conditions
Seal
Order no.: PLM 9-10AFD
Unit
Each
Material
Aluminium
P1 (bar)
260 BAR
Connection
4-hole flange to European standard. leakage oil connection 1/8" BSP
Shaft type
Conical 1:8
Length body
73 mm
Pressure max.
Max. pressure in the leakage oil line 5 bar BAR
Rotation max.
4000 r/min
Stroke volume
3,34 cm³/rev
Suction flange
1 GQ-06
Pressure flange
1 GQ-06
Rotational speed min.
650 r/min
Manufacturer
Casappa
