Casappa - PLP3022S083E3 - Casappa Pump PLP30.22S0-83E3-LED/EB-N-FS

OEM Supplier

SKU: casappa-plp3022s083e3

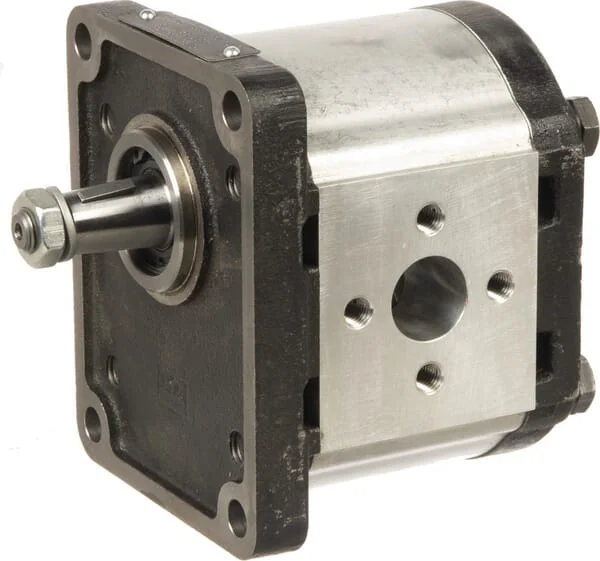

Casappa - PLP3022S083E3 - Casappa Pump PLP30.22S0-83E3-LED/EB-N-FS

€427.68€365.54 (Excl. VAT)

RRP:€454.11
Save €26.43

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€427.68

Brand
Casappa
Part Numbers
PLP3022S083E3
Unit
Each
Details
Various connection options Outer housing pivoted
Benefits
Wide range of applications Can be used in challenging environmental conditions
Properties
Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Shaft type
Tapered
Flange code
E3
Displacement
21,99 cm³/rev
Housing length
130 mm
Flange type norm
European
Housing material
Aluminium
Application range
Mobile applications Industrial applications
Max pressure peak
280 BAR
Mounting diameter
50,8 mm
Max rotation speed
3000 r/min
Shaft cone size code
1:8
Number of mounting holes
4

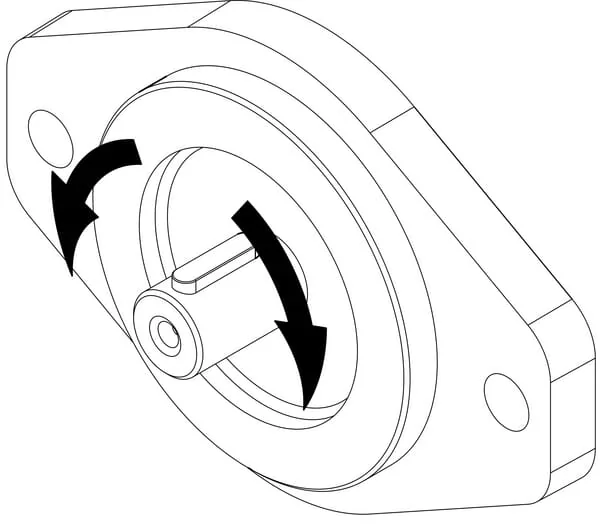

Prefered rotation direction
Counter-clockwise (CCW)
Flange and back cover material
Steel
Max. continous working pressure
250 BAR
Max intermittend working pressure
270 BAR
BConnection port to flange distance
63 mm
DSuction port bolts circle diameter
51 mm
Pressure port bolts circle diameter
40 mm
Manufacturer
Casappa

Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 808 genuine Casappa spare parts.
