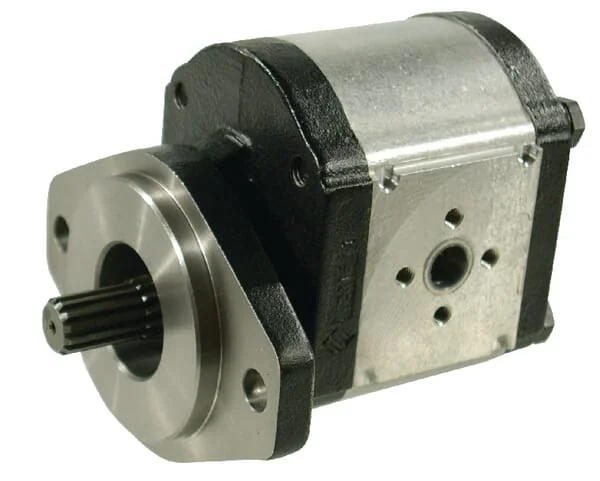

Casappa - PLP30.22S0-04S5 - GEAR PUMP 22CC / 13T.

OEM Supplier

SKU: casappa-plp3022s004s5

Casappa - PLP30.22S0-04S5 - GEAR PUMP 22CC / 13T.

€505.65€432.18 (Excl. VAT)

RRP:€667.04
Save €161.36

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€505.65

Brand
Casappa
Part Numbers
plp3022s004s5
Unit
Each
Shaft type
Splined
Flange code
SAE-B S5
Displacement
21,99 cm³/rev
Sealing type
Standard
Port position
Side
Housing length
106 mm
Housing material
Aluminium
Max pressure peak
280 BAR
Mounting diameter
101,6 mm
Max rotation speed
3000 r/min
Shaft number of teeth
13
Prefered rotation direction
Counter-clockwise (CCW)
Flange and back cover material
Steel
Max. continous working pressure
250 BAR
Max intermittend working pressure
270 BAR
Connection port to flange distance
39 mm
Suction port bolts circle diameter
51 mm
Pressure port bolts circle diameter
40 mm
Manufacturer
Casappa

Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 808 genuine Casappa spare parts.
