Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06
Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06
Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06
Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06
Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06
Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06

In stock - ready to ship

Order now for delivery between 8 May and 12 May
Free shipping

Pay Securely with

Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06

Danfoss - CB10AV2B1E1003 - Counter Balance 2x CB10AV2B1E1 A06

€269.57

(Excl. VAT)

Price

(Excl. VAT)

€269.57

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Type
Double
Unit
Each
Benefits
Ensures gentle, controlled movements and precise positioning of pulled and pushed loads
Material
Aluminium
Properties
Function as hose breakage protection Protection against pressure peaks due to application of extreme force Protection against cavitation for the user Opening pressure depends on pressure setting, load pressure and steering pressure ratio
Consists of
2 cartridges Housing
Pilot ratio
4.5:1.0

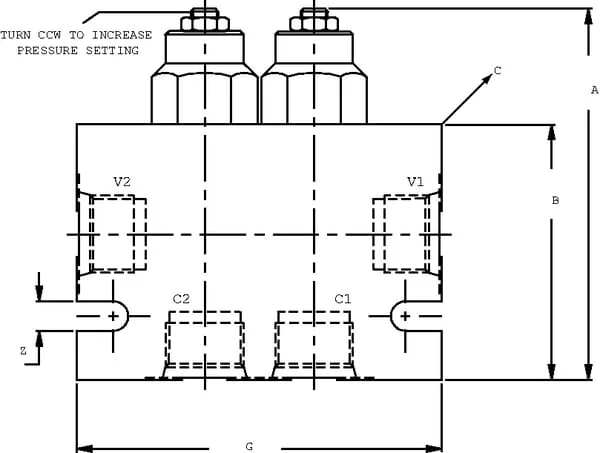

ATotal length
100 mm
BTotal height
80 mm
Max flow rate
40 l/min
Technical info
HV: the hydraulically released spring chambers A, B and T must be connected to each other in the neutral position AV: the vented spring chambers A and B may be sealed in the neutral position The pressure setting must be approx. 30% higher than the maximum load pressure A high return pressure can have a negative impact on the function of the valve Double-acting, cartridge construction Install in line as near to the consumer as possible Free flow from V to C
Sealing material
Buna-N
Application range
High pressure and moderate volume flow Telescopic loaders Forklifts Front loaders Crane applications
Max working pressure
250 BAR
Number of connections
2
Connections thread type
BSP
Connections thread diameter
3/8 Inch
Manufacturer
Danfoss
