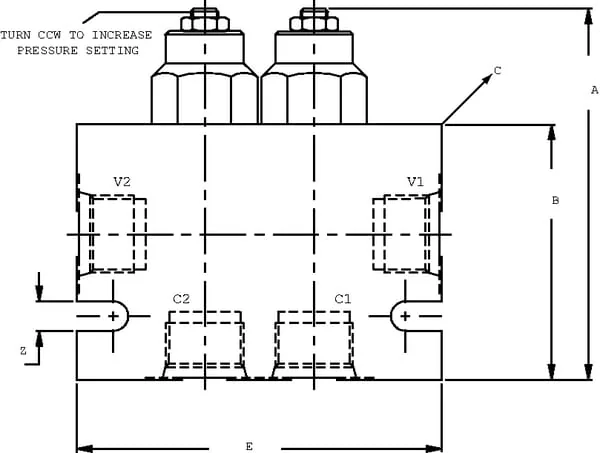

Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4
Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4
Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4
Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4
Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4
Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4

Danfoss - CP4412001 - Counter Balance 2x Cp4411B0EA451 A12 3/4

€300.23

(Excl. VAT)

Price

(Excl. VAT)

€300.23

Product Description

Adjustable load-holding and Counter balance functions for A and B lines
Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Type
Double
Unit
Each
Benefits
Allows smooth, controlled movements and accurate positioning of pulling and pushing loads
Material
Steel C45
Properties
Line breakage protection function Protects against pressure peaks caused by external forces Protects consumer against cavitation Opening pressure depends on pressure setting, load pressure and control pressure ratio
Consists of
2 cartridges Housing
Pilot ratio
1:4.5
BTotal height
89 mm
ETotal length
127 mm
Max flow rate
15 l/min
Technical info
Hydraulically released spring chamber; A, B and T must be connected to each other in the neutral position Integrated line valve Pressure setting approx. 30% higher than the maximum load pressure Free flow from V to C
Opening pressure
1 BAR
Sealing material
Buna-N
Application range
High pressure and medium volume flow Telescopic loaders Forklifts Front loaders Crane applications
Max working pressure
210 BAR
Connections thread type
BSP
Connections thread diameter
3/4 Inch
Manufacturer
Danfoss
