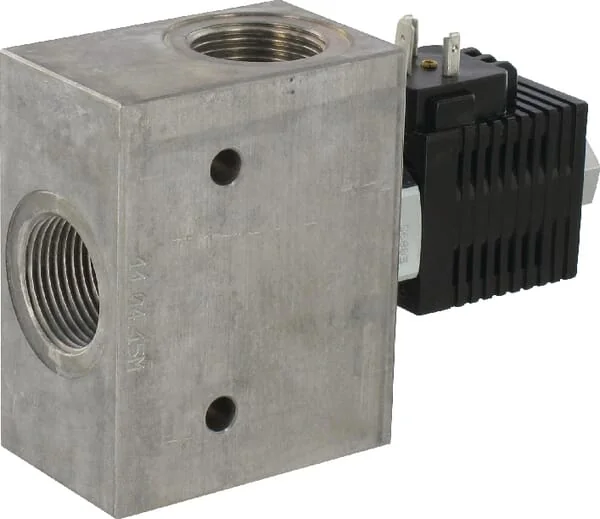

Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"
Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"
Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"
Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"
Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"
Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"

Danfoss - CP5024002 - Valve 2/2 4B0-NO-24VDC 1"

€212.37

(Excl. VAT)

Price

(Excl. VAT)

€212.37

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Type
Normally open (NO)
Unit
Each
Flow rate
130 l/min
Duty cylce
100 %
Properties
Voltage can be varied by replacing the coil
Consists of
Cartridge Housing Coil Without plug
Thread type
BSP
Voltage (DC)
24 V
Pilot pressure
3 BAR
Technical info
Integrated line valve Seat valve, electrical on/off Flow from 1 to 2
Housing material
Aluminium
Sealing material
Nitrile rubber [NBR]
Application range
High pressure and high volume flow Cut-off valve Pump circulation in open systems Way valve Load-holding valve
Max working pressure
210 BAR
Port thread connection
1 Inch
Manufacturer
Danfoss
