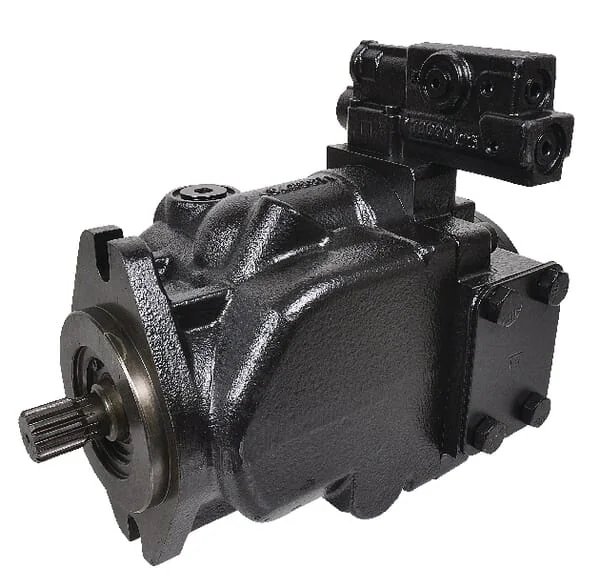

Danfoss - JRR045LS004 - Piston Pump 45 CC Load Sensing

OEM Supplier

SKU: danfoss-jrr045ls004

Danfoss - JRR045LS004 - Piston Pump 45 CC Load Sensing

€1,875.81€1,603.26 (Excl. VAT)

RRP:€2,272.65
Save €396.80

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€1,875.81

Brand
Part Number
JRR045LS004
Package length (mm)
300
Package width (mm)
200
Package height (mm)
200
Note
normally on stock
Unit
Each
Veer
310 BAR
Control
LS
Benefits
Extremely reliable Various pump controllers available Energy saving
ID number
83028177
Properties
Proven quality Long service life Very reliable Low noise emission Quick response time
Shaft type
C3 = Spline shaft Z=15 16/32
Flange code
SAE-B
Pressure max.
20-210 BAR
Stroke volume
45 cm³/rev
Technical info
Support bearing required for use of v-belt drive
Housing material
Cast iron
Sealing material
Viton
Application range
Stationary systems Mobile systems
Master model code
JR-R-S45B-LS-21-20-NN-N-3-C3RF
Max pressure peak
400 BAR
Max rotation speed
2650 r/min
Min rotation speed
500 r/min
Trough shaft option
Yes
Direction of rotation
CW
Shaft number of teeth
15
Displacement per stroke
45 cm³
Prefered rotation direction
Clockwise (CW)
Suitable for original number
83028177
Max continous working pressure
310 BAR
Type of suction side connection
Flange
Manufacturer

The Danfoss JRR045LS004 is a piston pump made by a company that also supplies parts to machine manufacturers. It has load sensing (LS) control and a clockwise rotating C3 spline shaft. The pump features a SAE-B flange and is equipped with Viton seals. It is designed for use in mobile and stationary systems.
Danfoss
Danfoss A/S is a global leader in climate and energy-efficient solutions, founded in 1933 by Mads Clausen on his parents' farm in Nordborg, Denmark. The company began with the invention of the expansion valve for refrigeration systems and has since grown into a multinational corporation. Headquartered in Nordborg, Denmark, Danfoss remains a privately held company, known for its innovative approach to engineering and sustainable technologies. Danfoss offers a broad portfolio of products across various segments, including heating, cooling, power solutions, and drives. In the agricultural sector, its hydraulic and electronic control systems are vital components for modern machinery. The brand is recognized for its advanced hydrostatic transmissions, such as the H1 series, and its comprehensive range of hydraulic pumps, motors, valves, and steering components, which enhance precision and efficiency in tractors, harvesters, and other heavy equipment. Partao provides a wide selection of genuine Danfoss spare parts, including Seal Kits, Air Filters, Ball Bearings, Bearing Housings, and Bolts & Fasteners. Agricultural professionals worldwide choose Danfoss components for their robust construction, advanced control capabilities, and contribution to operational efficiency. The brand's commitment to developing intelligent and energy-saving solutions helps farmers and operators optimize their machinery's performance, reduce fuel consumption, and achieve greater productivity in demanding field conditions. Shop more than 1,904 genuine Danfoss spare parts.
