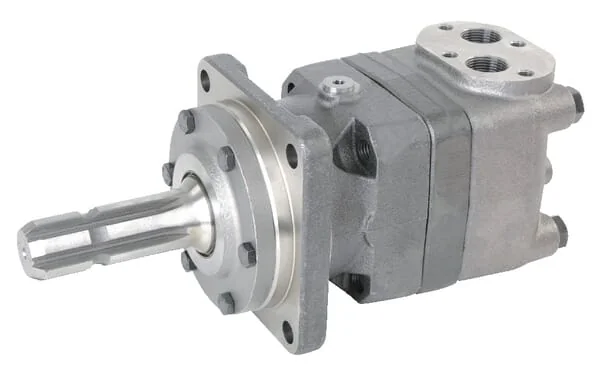

Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6
Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6
Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6
Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6
Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6
Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6

Danfoss - OMT160151B3018 - Orbit Motor, Shaft 1 3/8"z6

€1,023.30

(Excl. VAT)

Price

(Excl. VAT)

€1,023.30

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Unit
Each
Max. power
26,5 kW
Shaft type
Splined
Displacement
160 cm³/rev
Flange shape
Standard
Rotor length
16,5 mm
Sealing type
Standard
Housing length
190,5 mm
Max. flow rate
100 l/min
Shaft diameter
35 mm
Technical info
The orbitmotor offers compact construction and simple mounting. High shaft load because of short distance from mounting flange to the point of load application.
Application range
Wherever high torque and low rotational speeds are required, e.g.: Agricultural/forestry/construction machines Drills Heavy lifting gear and winches Ship and wharf equipment
Max pressure peak
280 BAR
Max rotation speed
625 r/min
Min rotation speed
10 r/min
Main port thread type
G
Max continuous torque
470 N·m
Shaft number of teeth
6
Drain port thread type
G
Number of mounting holes
4
Main port thread diameter
3/4 Inch
Drain port thread diameter
1/4 Inch
Max. continous working pressure
200 BAR
Max intermittend working pressure
240 BAR
Manufacturer
