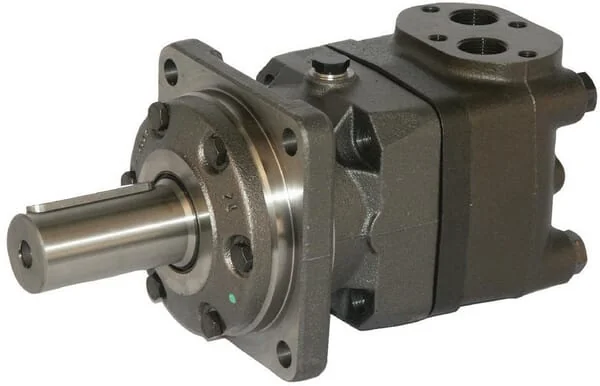

Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard
Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard
Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard
Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard
Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard
Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard

Danfoss - OMT500151B3005 - Orbit Motor, Shaft Diameter 40, Standard

€1,415.92

(Excl. VAT)

Price

(Excl. VAT)

€1,415.92

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Unit
Each
Max. power
26,5 kW
Shaft type
Straight parallel
Displacement
500 cm³/rev
Flange shape
Standard
Rotor length
61,5 mm
Sealing type
Standard
Housing length
235 mm
Max. flow rate
125 l/min
Shaft diameter
40 mm
Technical info
The orbitmotor offers compact construction and simple mounting. High shaft load because of short distance from mounting flange to the point of load application.
Application range
Wherever high torque and low rotational speeds are required, e.g.: Agricultural/forestry/construction machines Drills Heavy lifting gear and winches Ship and wharf equipment
Max pressure peak
210 BAR
Max rotation speed
240 r/min
Min rotation speed
6 r/min
Main port thread type
G
Max continuous torque
1220 N·m
Drain port thread type
G
Number of mounting holes
4
Main port thread diameter
3/4 Inch
Drain port thread diameter
1/4 Inch
Max. continous working pressure
160 BAR
Max intermittend working pressure
180 BAR
Manufacturer
Danfoss
