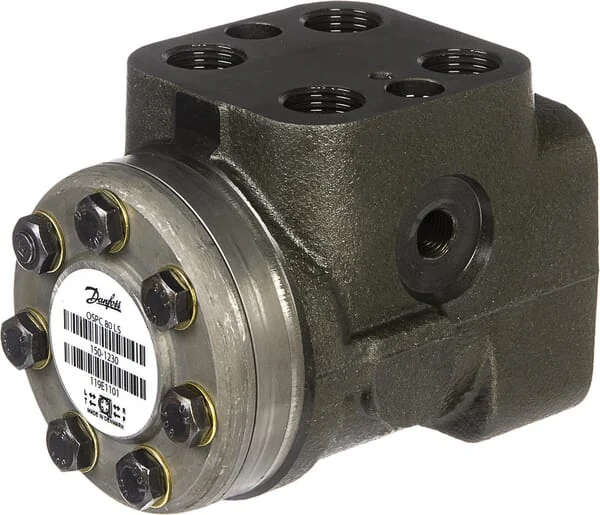

Danfoss - OSPC80LS1501230 - Orbit Steering Unit
Danfoss - OSPC80LS1501230 - Orbit Steering Unit
Danfoss - OSPC80LS1501230 - Orbit Steering Unit
Danfoss - OSPC80LS1501230 - Orbit Steering Unit
Danfoss - OSPC80LS1501230 - Orbit Steering Unit
Danfoss - OSPC80LS1501230 - Orbit Steering Unit

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping

Pay Securely with

Danfoss - OSPC80LS1501230 - Orbit Steering Unit

Danfoss - OSPC80LS1501230 - Orbit Steering Unit

€736.77

(Excl. VAT)

Price

(Excl. VAT)

€736.77

Product Description

Minimal loss of energy No oil flow in the steering if it is not being steered High levels of safety and comfort Minimal noise emission Slight reduction in pressure Only requires very low actuating torque from the steering wheel Steering capability is preserved even if the steering pump fails (emergency steering)
Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Pros
Minimal loss of energy No oil flow in the steering if it is not being steered High levels of safety and comfort Minimal noise emission Slight reduction in pressure Only requires very low actuating torque from the steering wheel Steering capability is preserved even if the steering pump fails (emergency steering)
Type
LS
Unit
Each
Dimension L1
131 mm
Dimension L2
13 mm
Displacement
80 cm³/rev
Danfoss number
150-1230
Load sensing type
Static
Min required flow
8 l/min
Pressure settings L, R
225 BAR
Max P connection pressure
170 BAR
Max T connection pressure
20 BAR
Thread type - connection A
BSP
Thread type - connection LS
BSP
Thread diameter - connection A
1/2 Inch
Thread diameter - connection LS
1/4 Inch
Manufacturer
Danfoss

Similar items you might like

  • Danfoss

    Danfoss - OSPC80ON1501150 - Orbit Steering Unit

    Danfoss

    €592.86

  • Danfoss

    Danfoss - OSPC80ON1501157 - Orbit Steering Unit

    Danfoss

    €690.00

  • Danfoss

    Danfoss - OSPC80ON1503065 - Orbit Steering Unit

    Danfoss

    €684.54

  • Danfoss

    Danfoss - OSPC80OR150N1008 - Orbit Steering Unit

    Danfoss

    €633.43

  • Danfoss

    Danfoss - OSPC80OR150N1029 - Orbit Steering Unit

    Danfoss

    €677.14

  • Danfoss

    Danfoss - OSPC80OR150N1219 - Orbit Steering Unit

    Danfoss

    €584.13

  • Danfoss

    Danfoss - OSPC9AFD - Seal Kit For Orbitrol OSPC

    Danfoss

    €46.68

  • Danfoss

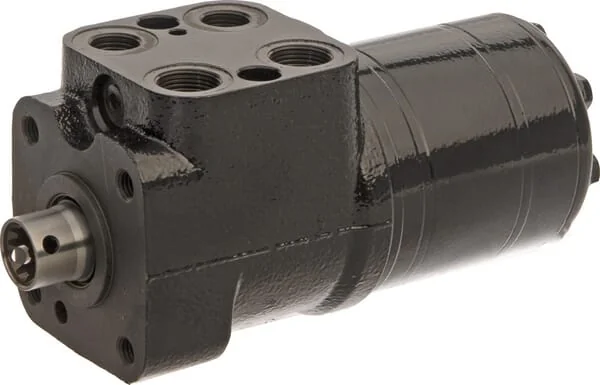

    Danfoss - OSPD6022011171974 - Orbitrol OSPD 60/220 OR
