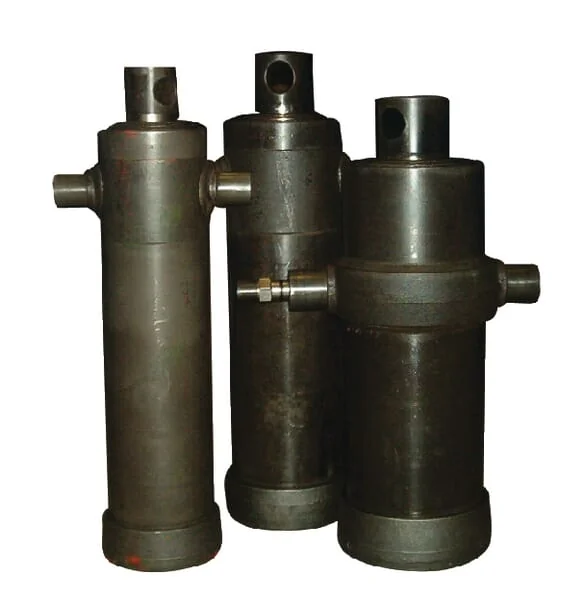

Di Natale Bertelli - TC2034F - Telescopic Cylinder TC 2034 Eye
Di Natale Bertelli - TC2034F - Telescopic Cylinder TC 2034 Eye
Di Natale Bertelli - TC2034F - Telescopic Cylinder TC 2034 Eye
Di Natale Bertelli - TC2034F - Telescopic Cylinder TC 2034 Eye

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC2034F - Telescopic Cylinder TC 2034 Eye

Di Natale Bertelli - TC2034F - Telescopic Cylinder TC 2034 Eye

€291.28

(Excl. VAT)

Price

(Excl. VAT)

€291.28

Product Description

The Di Natale-Bertelli TC2034F is a genuine single-acting telescopic hydraulic cylinder featuring a 600mm stroke. Designed with a weld-on clevis on the rod side and an eye with a 25.4mm diameter on the base side, it operates at a maximum working pressure of 200 bar. Its robust construction includes an outer diameter of 70mm and an inner diameter of 60mm, making it suitable for various agricultural and industrial applications requiring reliable linear actuation.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
790 mm
Weight
18 kg
DIN standard
1629
LMin. length
377 mm
Oil capacity
2,5 l
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
32 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
102 mm
FMounting hole to swivel tap distance
275 mm
HMounting hole diameter - rod connection
26 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
