Di Natale Bertelli - TC2036F - Telescopic Cylinder TC 2036 Eye
Di Natale Bertelli - TC2036F - Telescopic Cylinder TC 2036 Eye
Di Natale Bertelli - TC2036F - Telescopic Cylinder TC 2036 Eye
Di Natale Bertelli - TC2036F - Telescopic Cylinder TC 2036 Eye

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC2036F - Telescopic Cylinder TC 2036 Eye

Di Natale Bertelli - TC2036F - Telescopic Cylinder TC 2036 Eye

€323.93

(Excl. VAT)

Price

(Excl. VAT)

€323.93

Product Description

The Di Natale-Bertelli TC2036F is a genuine single-acting telescopic hydraulic cylinder featuring a 1000mm stroke and a 3-stage design. It has an outer diameter of 70mm, a closed length of 520mm, and an extended length of 1520mm. The cylinder includes a 25.4mm eye diameter and a 1/2 BSP port thread, weighing 6.8 kg.
Di Natale Bertelli

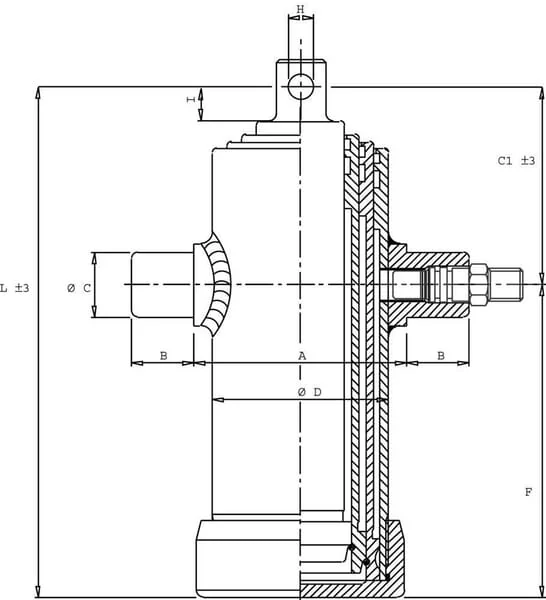

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1043 mm
Weight
21,5 kg
DIN standard
1629
LMin. length
462 mm
Oil capacity
3,3 l
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
32 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
102 mm
FMounting hole to swivel tap distance
360 mm
HMounting hole diameter - rod connection
26 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
