Di Natale Bertelli - TC3023F - Telescopic Cylinder + Eye 695mm
Di Natale Bertelli - TC3023F - Telescopic Cylinder + Eye 695mm
Di Natale Bertelli - TC3023F - Telescopic Cylinder + Eye 695mm
Di Natale Bertelli - TC3023F - Telescopic Cylinder + Eye 695mm

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC3023F - Telescopic Cylinder + Eye 695mm

Di Natale Bertelli - TC3023F - Telescopic Cylinder + Eye 695mm

€285.74

(Excl. VAT)

Price

(Excl. VAT)

€285.74

Product Description

The Di Natale-Bertelli TC3023F is a high-quality genuine telescopic hydraulic cylinder designed for various agricultural and industrial applications. Featuring an eye mounting, this cylinder has a closed length of 695mm, a stroke of 1000mm, and a rod diameter of 30mm. It is engineered for reliable performance in demanding environments, ensuring efficient operation and durability.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
695 mm
Weight
23,3 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

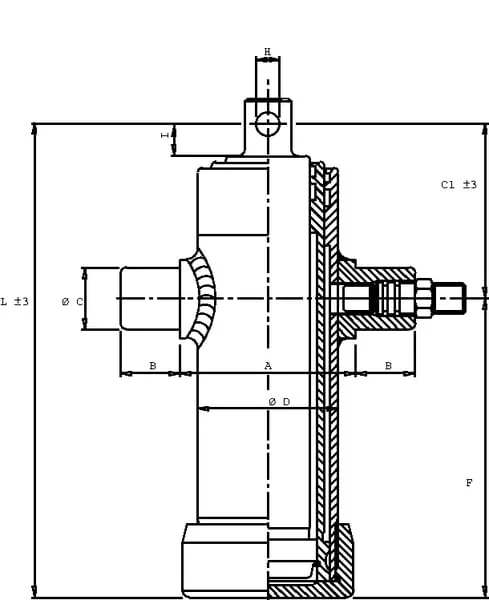

LMin. length
465 mm
Oil capacity
2,7 l
Number of stages
2
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
8,1 t
Max. capacity at 180 bar
8,1 t
Mounting type - rod connection
Bore
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
32 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
105 mm
FMounting hole to swivel tap distance
360 mm
HMounting hole diameter - rod connection
31 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
