Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball
Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball
Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball
Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball
Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball

Di Natale Bertelli - TC3026 - Telescopic Cylinder TC 3026 Ball

€385.22

(Excl. VAT)

Price

(Excl. VAT)

€385.22

Product Description

The Di Natale-Bertelli TC3026 is a genuine 3-stage ball telescopic hydraulic cylinder designed for agricultural and industrial applications. It features a maximum stroke of 1000 mm and a closed length of 510 mm. Engineered for robust performance, this cylinder operates at a maximum pressure of 180 bar, providing a maximum lifting capacity of 2000 kg. It has an oil capacity of 1.1 liters and weighs 10.5 kg, ensuring reliable and efficient operation.
Di Natale Bertelli

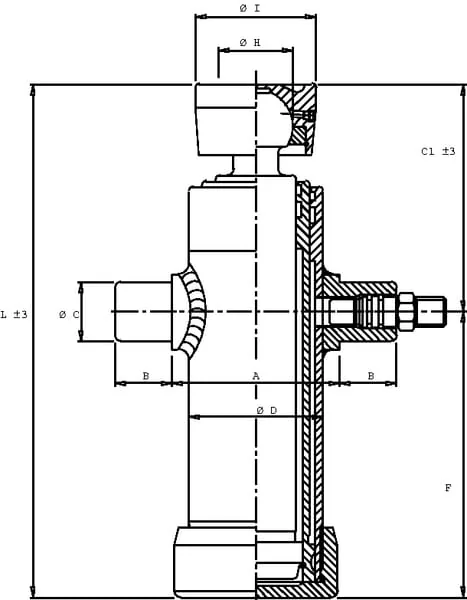

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
995 mm
Weight
30 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
665 mm
Oil capacity
3,8 l
Max. capacity
5,5 t
Number of stages
2
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
115 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
95 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
150 mm
FMounting hole to swivel tap distance
515 mm
HMounting hole diameter - rod connection
55 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
