Di Natale Bertelli - TC3033 - Telescopic Cylinder TC 3033 Ball
Di Natale Bertelli - TC3033 - Telescopic Cylinder TC 3033 Ball
Di Natale Bertelli - TC3033 - Telescopic Cylinder TC 3033 Ball
Di Natale Bertelli - TC3033 - Telescopic Cylinder TC 3033 Ball
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC3033 - Telescopic Cylinder TC 3033 Ball

Di Natale Bertelli - TC3033 - Telescopic Cylinder TC 3033 Ball

€379.71

(Excl. VAT)

Price

(Excl. VAT)

€379.71

Product Description

The Di Natale-Bertelli TC3033 is a genuine single-acting, 3-stage telescopic cylinder designed for various agricultural applications. It features robust construction with ball joint mounting at both the front and rear for flexible installation. This cylinder provides a total stroke length of 750mm and a compact closed length of 430mm. It is engineered to operate efficiently under a maximum pressure of 200 bar. Key dimensions include a 70mm piston diameter and sequential rod diameters of 60mm (1st stage), 50mm (2nd stage), and 40mm (3rd stage). With a weight of 10.00 kg, the TC3033 ensures reliable performance and durability.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
785 mm
Weight
26 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

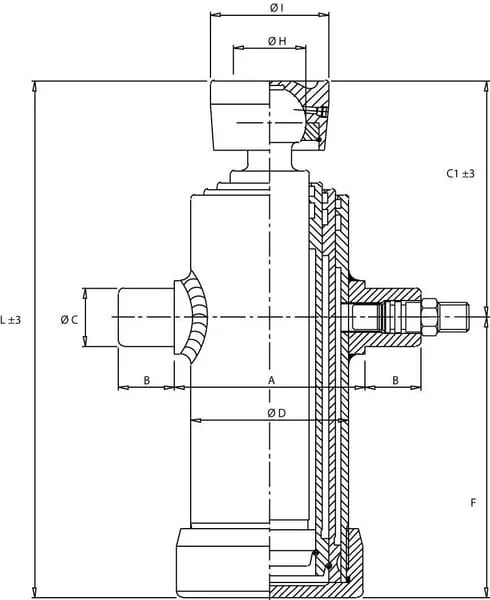

LMin. length
432 mm
Oil capacity
3,8 l
Max. capacity
8 t
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Stage 3 diameter
91 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
112 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
8,1 t
Max. capacity - stage 3
11,7 t
Max. capacity at 180 bar
11,7 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
135 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
95 mm
Mounting type - cylinder connection
Trunnion
FMounting hole to swivel tap distance
280 mm
HMounting hole diameter - rod connection
55 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
