Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball
Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball
Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball
Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball
Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball

Di Natale Bertelli - TC3024 - Telescopic Cylinder TC 3024 Ball

€333.65

(Excl. VAT)

Price

(Excl. VAT)

€333.65

Product Description

The Di Natale-Bertelli TC3024 is a genuine single-acting telescopic cylinder featuring a ball joint and three extensions. Designed for robust performance, it offers a 750 mm stroke, an external diameter of 90 mm, and a closed center distance of 410 mm. This durable cylinder operates at a maximum pressure of 180 bar and supports a maximum flow of 25 L/min, making it suitable for various agricultural and industrial applications.
Di Natale Bertelli

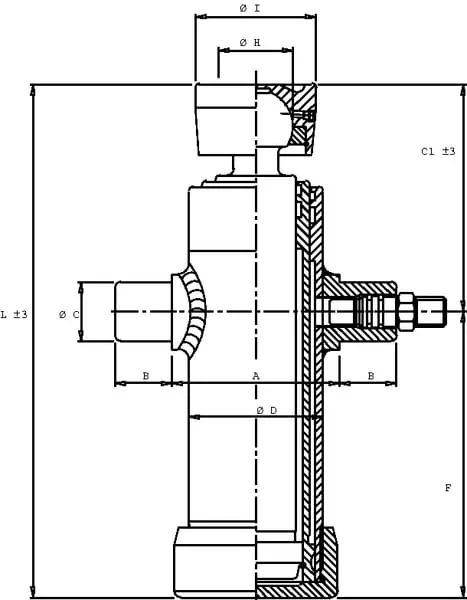

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
795 mm
Weight
25,3 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
560 mm
Oil capacity
3 l
Max. capacity
5,5 t
Number of stages
2
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
115 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
95 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
150 mm
FMounting hole to swivel tap distance
410 mm
HMounting hole diameter - rod connection
55 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
