Di Natale Bertelli - TC3046F - Telescopic Cylinder TC 3046 Eye
Di Natale Bertelli - TC3046F - Telescopic Cylinder TC 3046 Eye
Di Natale Bertelli - TC3046F - Telescopic Cylinder TC 3046 Eye
Di Natale Bertelli - TC3046F - Telescopic Cylinder TC 3046 Eye

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC3046F - Telescopic Cylinder TC 3046 Eye

Di Natale Bertelli - TC3046F - Telescopic Cylinder TC 3046 Eye

€514.67

(Excl. VAT)

Price

(Excl. VAT)

€514.67

Product Description

The Di Natale-Bertelli TC3046F is a genuine single acting telescopic hydraulic cylinder, designed with an eye fixing for robust agricultural and industrial applications. It features a 600 mm stroke, a closed center distance of 460 mm, and an open center distance of 1060 mm. The cylinder has an outer diameter of 70 mm, a rod diameter of 30 mm, and a pin diameter of 25.4 mm (1 inch).
Di Natale Bertelli

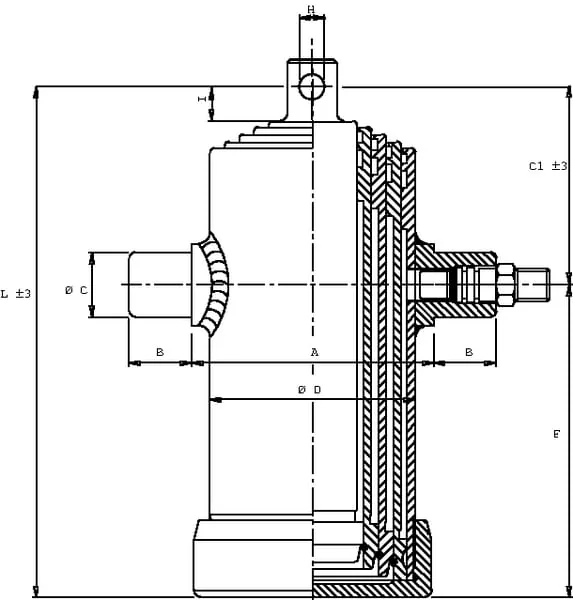

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1290 mm
Weight
39 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
452 mm
Oil capacity
7,5 l
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Stage 3 diameter
91 mm
Stage 4 diameter
107 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
124 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
40 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
8,1 t
Max. capacity - stage 3
11,7 t
Max. capacity - stage 4
16,1 t
Max. capacity at 180 bar
16,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
32 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
112 mm
FMounting hole to swivel tap distance
340 mm
HMounting hole diameter - rod connection
31 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
