Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball
Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball
Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball
Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball
Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball

Di Natale Bertelli - TC3052 - Telescopic Cylinder TC 3052 Ball

€622.37

(Excl. VAT)

Price

(Excl. VAT)

€622.37

Product Description

Genuine Di Natale-Bertelli TC3052 series 3-stage single-acting telescopic hydraulic cylinder, engineered for robust performance in agricultural and industrial machinery. This durable cylinder features a 30mm rod diameter and a 52mm outer tube diameter, capable of withstanding a maximum operating pressure of 200 bar. Designed with eyelet mounting at both ends, it ensures versatile and secure installation in various hydraulic systems.
Di Natale Bertelli

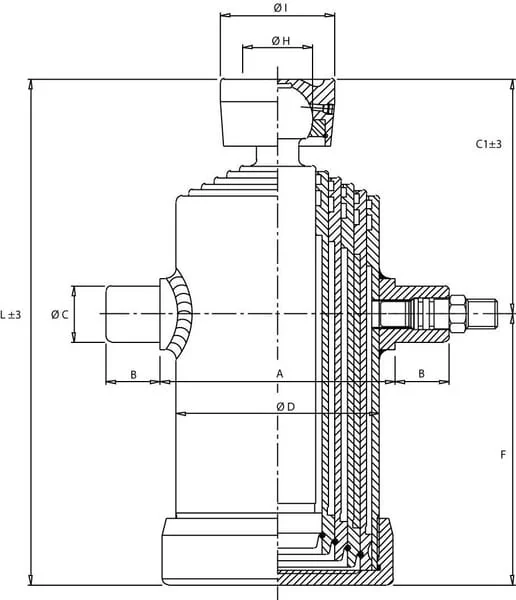

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1230 mm
Weight
45 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
430 mm
Oil capacity
9 l
Max. capacity
11 t
Number of stages
5
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Stage 3 diameter
91 mm
Stage 4 diameter
107 mm
Stage 5 diameter
126 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
152 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
45 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
8,1 t
Max. capacity - stage 3
11,7 t
Max. capacity - stage 4
16,1 t
Max. capacity - stage 5
22,4 t
Max. capacity at 180 bar
22,4 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
175 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
95 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
165 mm
FMounting hole to swivel tap distance
265 mm
HMounting hole diameter - rod connection
55 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
