Di Natale Bertelli - TC3065 - Telescopic Cylinder TC 3065 Ball
Di Natale Bertelli - TC3065 - Telescopic Cylinder TC 3065 Ball
Di Natale Bertelli - TC3065 - Telescopic Cylinder TC 3065 Ball
Di Natale Bertelli - TC3065 - Telescopic Cylinder TC 3065 Ball

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC3065 - Telescopic Cylinder TC 3065 Ball

Di Natale Bertelli - TC3065 - Telescopic Cylinder TC 3065 Ball

€447.27

(Excl. VAT)

Price

(Excl. VAT)

€447.27

Product Description

The Di Natale-Bertelli TC3065 is a genuine 3-stage telescopic hydraulic cylinder featuring a ball joint mounting. It offers a stroke of 650 mm, a closed length of 420 mm, and an outer diameter of 80 mm. Designed for robust agricultural and industrial applications, this cylinder has a bore of 65 mm, a rod diameter of 30 mm, and pin diameters of 25 mm for both top and bottom connections. With a weight of 8.5 kg, it ensures reliable performance.
Di Natale Bertelli

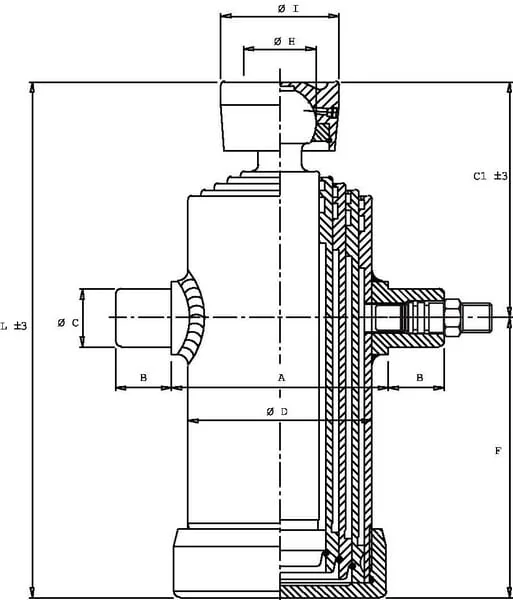

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1050 mm
Weight
25,5 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
425 mm
Oil capacity
4,3 l
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Stage 4 diameter
91 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
112 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity - stage 4
11,7 t
Max. capacity at 180 bar
11,7 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
112 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
145 mm
FMounting hole to swivel tap distance
280 mm
HMounting hole diameter - rod connection
45 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
