Di Natale Bertelli - TC3096F - Telescopic Cylinder TC 3096 Eye
Di Natale Bertelli - TC3096F - Telescopic Cylinder TC 3096 Eye
Di Natale Bertelli - TC3096F - Telescopic Cylinder TC 3096 Eye
Di Natale Bertelli - TC3096F - Telescopic Cylinder TC 3096 Eye
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC3096F - Telescopic Cylinder TC 3096 Eye

Di Natale Bertelli - TC3096F - Telescopic Cylinder TC 3096 Eye

€726.66

(Excl. VAT)

Price

(Excl. VAT)

€726.66

Product Description

The Di Natale-Bertelli TC3096F is a genuine telescopic hydraulic cylinder designed for various agricultural and industrial machinery. This single-acting cylinder features an eye mount, a stroke of 960 mm, a closed length of 560 mm, and a rod diameter of 30 mm, providing reliable performance in demanding environments.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Equivalent AM Part Numbers

Di natale Bertelli

TC3096F
Unit
Each
Stroke
2490 mm
Weight
49 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

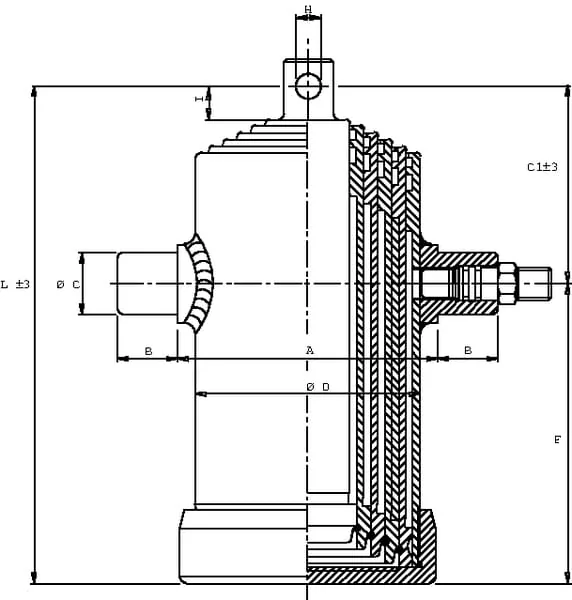

LMin. length
625 mm
Oil capacity
12,4 l
Number of stages
5
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Stage 4 diameter
91 mm
Stage 5 diameter
107 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
124 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
40 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity - stage 4
11,7 t
Max. capacity - stage 5
16,1 t
Max. capacity at 180 bar
16,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
27 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
110 mm
FMounting hole to swivel tap distance
515 mm
HMounting hole diameter - rod connection
26 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
